Allen & Heath | SKU: AH-QU-24C

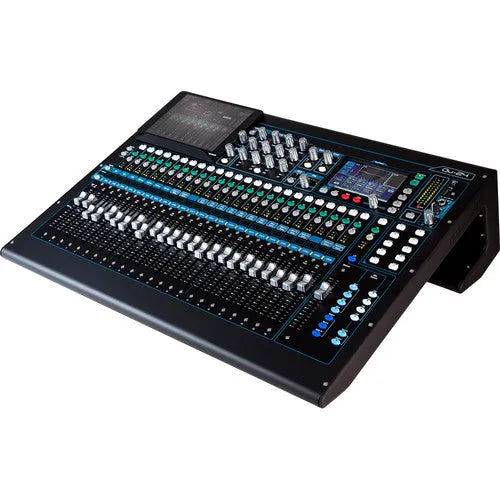

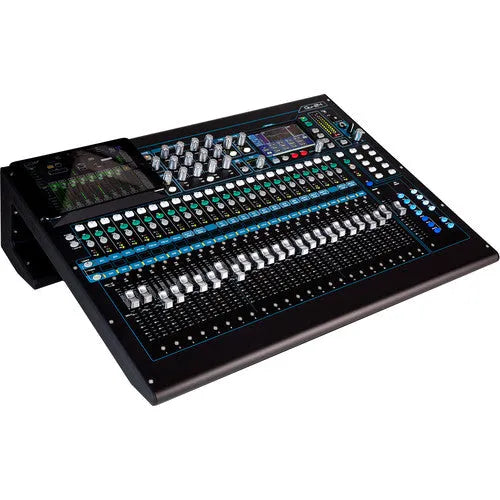

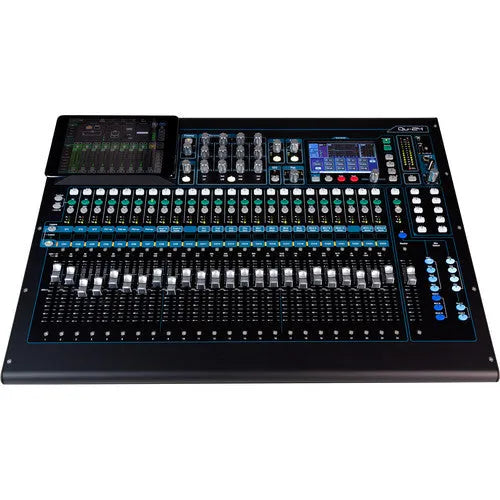

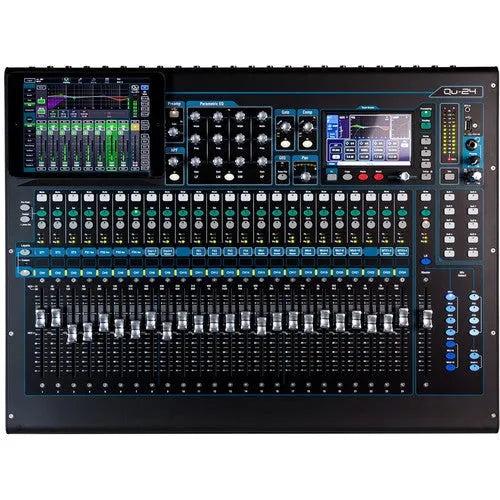

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)

Name: Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)
Brand: Allen & Heath
SKU: AH-QU-24C
Price: 11349.00 AED
Availability: InStock

Dhs. 11,349.00

Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

Credit card & Tabby
Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features

Chrome Knobs & Faders + Updated Firmware
24 AnalogiQ Preamps
5" Touchscreen
25 Motorized 100mm Faders with Recall
5-Core ARM Processor
Integrated iLive FX
Record Audio to Mac or USB Hard Drive
48 kHz/24-Bit Resolution
iPad App for Wireless Mixing
dSNAKE Compatible

Overview

The chrome edition Qu-24C 30-In/24-Out Digital Mixer from Allen & Heath features 24 of Allen & Heath's AnalogiQ microphone preamps and is powered by its 5-core ARM processor to provide a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, reverb, and more. The mixer is capable of recording audio to either your Mac or a USB hard drive in up to 48 kHz/24-bit resolution, allowing you to record both the individual tracks and live mix of your shows. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8).

The mixer is compatible with both the ME monitoring system and dSNAKE digital connectivity system from Allen & Heath. The Qu-24 can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.

Key Specs

Number of Analog Input Channels	24
Mix Routing	4x Stereo FX Return
Groups	4x Mute Group
Display	5" Touchscreen
Display Resolution/Color	Main Display: 800 x 480
Faders & Level Adjustment	x 3.9" / 100 mm Motorized
Meter Range	-48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration	0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)

Signal Processing

Gain/Trim Range	Line: ±24 dB (Stereo Channels) Mic/Line: -10 dB to +60 dB (in 1 dB Steps)
Input Polarity	Normal/Reverse
Gate Parameters	Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 sec Release: 10 ms to 1 sec
Compressor Parameters	Threshold: -46 to 18 dBu Ratio: 1:1 to ∞:1 Attack: 300 μs to 300 ms Release: 100 ms to 1 sec Knee: Soft / Hard
EQ	FX Returns: 4-Band Parametric
EQ Parameters	1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ	28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters	High-Pass: 20 Hz to 20 kHz, 12 dB/Octave
Channel Output/Source Monitoring	AFL, PFL, Post-Preamp, Post-EQ, Post-FX
Built-In Effects	Reverb Delay Reverb (Gated) ADT Chorus Phaser Flanger
Real Time Analyzer	31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay	Adjustable Up to 170 ms

Digital Audio

Sample Rates	48 kHz AES3 Output: 48 kHz
Bit Depth	AD/DA Conversion: 24-Bit Delta Sigma
Latency	1.2 ms (Mic Input to XLR Output) 0.7 ms (Mic Input to AES Output)

Performance

dBFS Reference Level	+18 dBu = 0 dBFS
Headroom	+18 dB
Frequency Response	20 Hz to 20 kHz +0/-0.5 dB
Max Input Level	Mic Input: +19 dBu Line Input: +29 dBu Aux Input: +22 dBu (+4 dBu) +18 dBu (0 dBu)
Output Level	Line Output: +22 dBu (2901653168) +4 dBu (2901653169) Stereo Output: +22 dBu (2901653168) +4 dBu (2901653169)
Analog Dynamic Range	112 dB
I/O Impedance	1/4" Stereo Output: < 75 Ohms AES3 Output: 110 Ohms Aux Input: > 7 Kilohms XLR Line Output: < 75 Ohms XLR Mic/Line Input: > 5 Kilohms 1/4" Mic/Line Input: > 10 Kilohms
Noise Floor	-90 dBu (with Inputs Muted) -91 dBu (with Inputs Muted)
THD+N	Mic/Line Input: 0.0005% at Unity Gain 0.001% at +30 dB Gain
Signal Generator	Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

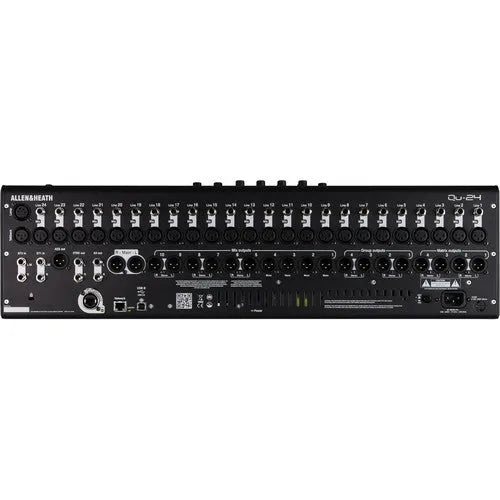

Connectivity

Analog Inputs	1x XLR Talkback Input 24x XLR Balanced Mic Input 24x 1/4" TRS Balanced Line Input 4x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled) 1x 1/8" / 3.5 mm Unbalanced Aux Input
Analog Outputs	10x XLR Balanced Mix Output 2x XLR Balanced Main Output 4x XLR Balanced Subgroup Output 4x XLR Balanced Matrix Output 4x 1/4" TRS Balanced Aux Output (2 Stereo Pairs)
Digital I/O	1x RJ45 (Network) 1x XLR AES3 Output 1x etherCON dSNAKE (I/O)

Power

AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	120 W (Maximum)

Physical

Operating Temperature	32 to 95°F / 0 to 35°C
Dimensions	24.9 x 19.7 x 7.4" / 632 x 500 x 186 mm
Weight	31 lb / 14 kg

Packaging Info

Package Weight	39.5 lb
Box Dimensions (LxWxH)	30.75 x 26.5 x 13.75"

What's in the Box

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)
Limited 1-Year Manufacturer Warranty
