Allen & Heath  |  SKU: AH-SQ-5

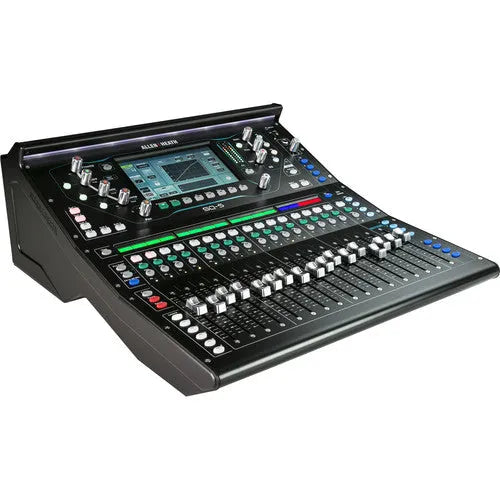

Allen & Heath SQ-5 48-Channel / 36-Bus Digital Mixer with 16+1 Motorized Faders

Dhs. 15,299.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description
Key Features
  • 16 Microphone Preamps
  • 7" Capacitive Touchscreen
  • 96 kHz FPGA Processing
  • Eight Stereo FX Engines with Returns
  • 32 x 32 USB Audio Interface
  • AES Output
  • 12 Stereo Mixes + LR
  • Channel LCD Displays
  • 8 Assignable SoftKeys
  • SLink Port for Remote Audio & Expansion

Overview

The Allen & Heath SQ-5 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-5 features 16+1 motorized faders and 16 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Auto Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.

At the heart of the SQ-5 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel / mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.

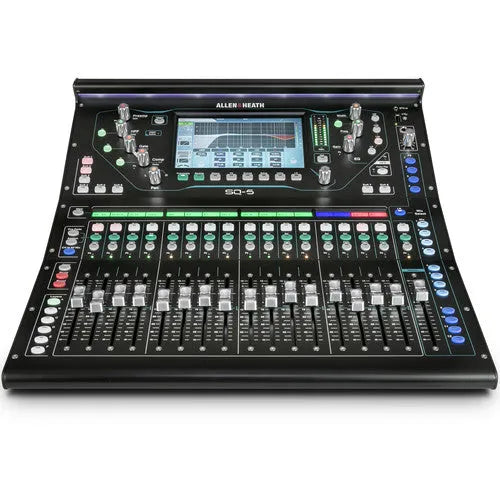

The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-5 offers softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, making it well suited for virtual sound checks and studio mixing.

The SQ-5 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-5 ships with a power cord.

Key Specs

Max I/O Capacity
48x Input / 36x Output
Number of Analog Input Channels
No
Number of Mic Preamps
16
Number of Analog Output Channels
14
Faders & Level Adjustment
17x 3.9" / 100 mm Fader
Built-In Effects
Reverb
Stereo Delay (Tap)
Reverb (Gated)
ADT
2x Chorus
Flanger
Phaser
Analog Inputs
1x XLR Talkback Input
16x XLR Balanced Mic/Line Input
4x 1/4" TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled)
1x 1/8" / 3.5 mm Unbalanced Aux Input
Analog Outputs
12x XLR Balanced Output
2x 1/4" TRS Balanced Output
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON (I/O)
USB I/O
1x USB-A 2.0 (External Memory)
1x USB-B 2.0 (Audio Streaming)
Wireless
No
Rack Mountable
Yes
Mixer
Max I/O Capacity
48x Input / 36x Output
Number of Analog Input Channels
No
Number of Mic Preamps
16
Number of Analog Output Channels
14
Mix Routing
8x Stereo FX Return
Groups
8x Mute Group
8x DCA Group
Presets
Yes
Display
7" Touchscreen
Faders & Level Adjustment
17x 3.9" / 100 mm Fader
Meters
Main Meter:
2x 12-Segment LED
Channel Meter:
Single LED
Signal Processing
Gain/Trim Range
Line:
±24 dB (Stereo Channels)
Line/Mic:
0 dB to +60 dB (in 1 dB Steps)
Input Pad
-20 dB
Input Polarity
Normal/Reverse
Dynamic Processing
Input Channels:
Compressor, Gate
Master:
Compressor, Limiter
EQ
FX Returns:
4-Band Parametric
EQ Parameters
1x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2x MF Notch/Peak:
±15 dB at 20 Hz to 20 kHz
1x LF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ
28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters
High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Solo/Mute
Mute, PFL per Input Channel, Bus, Master
Built-In Effects
Reverb
Stereo Delay (Tap)
Reverb (Gated)
ADT
2x Chorus
Flanger
Phaser
Audio Delay
Adjustable Up to 682 ms
Automatic Mic Mixing
Yes

Digital Audio
Sample Rates
96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz
Stereo Record:
96 kHz
Stereo Playback:
44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record:
96 kHz
Bit Depth
Up to 96-Bit
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit

Performance
Frequency Response
20 Hz to 20 kHz +0/-0.5 dB
Max Input Level
Mic/Line Input:
+30 dBu
Aux Input:
+22 dBu (+4 dBu)
+18 dBu (0 dBu)
Analog Dynamic Range
112 dB
I/O Impedance
1/4", XLR Output:
< 75 Ohms
AES3 Output:
110 Ohms
Aux Input:
> 7 Kilohms
Line/Mic Input:
> 5 Kilohms
Noise Floor
-90 dBu (with Inputs Muted)
THD+N
0.006% at Unity Gain
Mic/Line Input to AES3 Output:
0.002% at Unity Gain
0.003% at +30 dB Gain
Signal Generator
Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

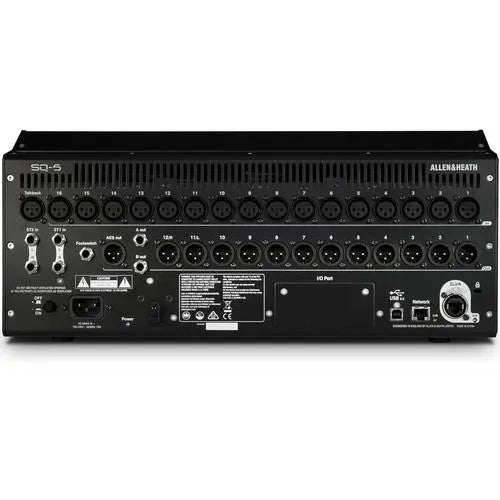

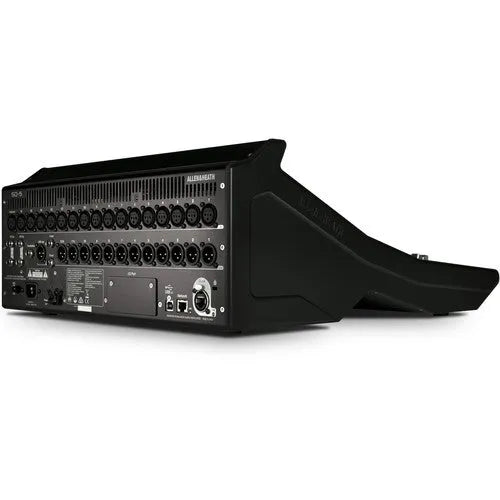

Connectivity
Analog Inputs
1x XLR Talkback Input
16x XLR Balanced Mic/Line Input
4x 1/4" TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled)
1x 1/8" / 3.5 mm Unbalanced Aux Input
Analog Outputs
12x XLR Balanced Output
2x 1/4" TRS Balanced Output
Phantom Power
+48 V
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON (I/O)
MIDI I/O
No
USB I/O
1x USB-A 2.0 (External Memory)
1x USB-B 2.0 (Audio Streaming)
Expansion Ports
1x I/O Card
Wireless
No
Mobile App Compatible
Yes: Android & iOS
App Name: SQ MixPad
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup

Recording
Max Multitrack Recording
16 Tracks
Media Support
USB Drive
File Format Support
WAV

Compatibility
OS Compatibility
Computer: Windows 10 or Later / macOS 10.14 to 11
Mobile: Android/iOS
OS Compatibility
Windows 10 (64-Bit Only)
macOS 10.14 to 11 (64-Bit Only)
Mobile Device Compatibility
Android Smartphone
Android Tablet
iPad
iPhone

Power
Input Power
100 to 240 VAC, 50 / 60 Hz

Physical
Rack Mountable
Yes
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
17.3 x 20.3 x 7.8" / 43.9 x 51.6 x 19.8 cm
Weight
23.1 lb / 10.5 kg

Packaging Info
Package Weight
30.3 lb
Box Dimensions (LxWxH)
27 x 24 x 14.5"



What's in the Box

  • Allen & Heath SQ-5 48-Channel / 36-Bus Digital Mixer with 16+1 Motorized Faders
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
