Allen & Heath  |  SKU: AH-ZED16FX

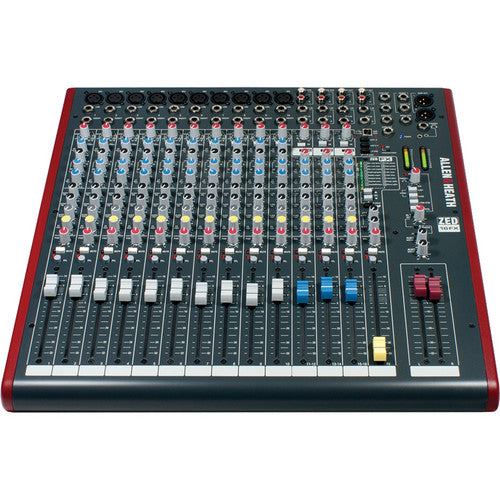

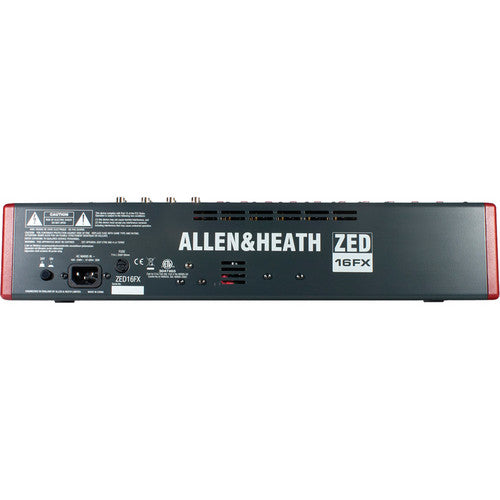

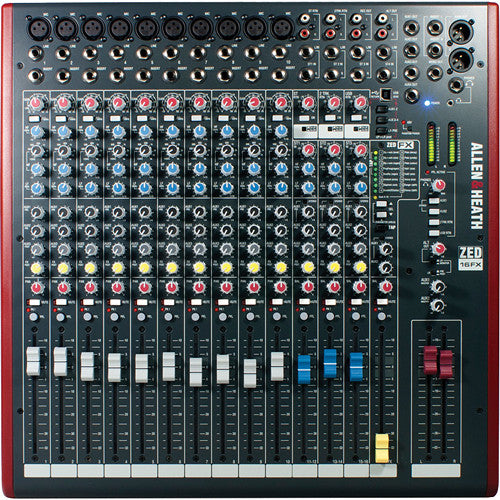

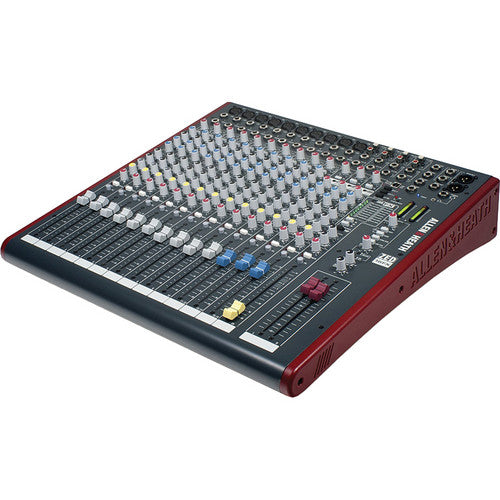

Allen & Heath ZED-16FX 16-Channel Recording and Live Sound Mixer with FX & USB

Dhs. 2,899.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby (choose credit card option)
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description
Key Features
  • USB Connection for Mac and Windows
  • 16 Internal Effects
  • 10 Mono Input Channels
  • 3 Stereo Input Channels
  • 3-Band EQ Section with MusiQ
  • Four AUX Sends
  • Includes Cakewalk Sonar LE Software

Overview

The Allen and Heath ZED-16FX Mixing Console is a flexible, compact mixing desk for today's home studio, project recording and small live sound reinforcement applications. The ZED-16FX features 16 inputs comprised of 10 mono and 3 stereo channels. The mono inputs provide high quality microphone preamps and three-band EQ. The ZED-16FX features a USB connector for direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included. In addition to all this, the mixer's internal effects engine delivers up to 16 high quality effects for recording and live sound reinforcement.

Key Specs

Total # Of Inputs
16
Mic/Line Inputs
3-pin XLR Balanced Microphone x10
1/4" Phone Balanced Line x10
Stereo Line Inputs
ST1 - ST3 1/4" Phone L/R Stereo
In-Line Inputs/Returns
No
AUX Sends
1/4" TRS Phone x3 4 Total sends, 1 reserved for internal effects
AUX Returns
Dedicated USB Return, Aux 1-2, Aux 3-4, L/R Pre
Inserts
1/4 TRS Phone x12 (Mono chs and Main Stereo Out)
BUS (Group) Outputs
No
2 Trk Master I/O
Main Output: Balanced 3-pin XLR
ALT I/O
USB Connector
1/4" Phone Mono Out
Monitor Outputs
RCA Stereo Phono - ALT Out
RCA Stereo Phono - REC Out
EQ Section
3-Band with Mid Sweep On all Mono Channels
2-Band On Stereo Channels
Solo/Mute
Mute and PFL Solo
Channel Level Control
100mm Fader
Trim/Gain Control
Rotary Control
Phantom Power
+48V Switched Globally
Metering
12 Segment Peak LEDs
Frequency Response
Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to 20kHz
Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 30kHz
Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
Headroom
Analogue Headroom from nominal (0Vu): 21dB
USB in & out headroom from nominal (0Vu): 14dB
Signal-to-Noise Ratio
Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
Mix L/R out, L/R faders = 0, 22-22kHz: -86dBu
Total Harmonic Distortion (THD)
Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out: 0. 004%
Mic in to Mix L/R Out, 30dB gain 1kHz: 0. 014%
Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0. 005%
Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0. 003%
USB
USB Audio In/Out: USB 1.1 compliant 16-bit
Sample Rate: 32, 44.1, or 48kHz
Dimensions
18.3 x 3.85 x 18.3" (464 x 98 x 465mm)
Weight
18.7 lb (8.5 kg)
Packaging Info
Package Weight
22.5 lb
Box Dimensions (LxWxH)
24.25 x 23.75 x 10.75"



What's in the Box

  • Allen & Heath ZED-16FX 16-Channel Recording and Live Sound Mixer with FX & USB
  • USB Cable
  • Power Cable
  • Sonar LE Install CD
  • Limited 1-Year Manufacturer Warranty
