Atomos  |  SKU: ATOMSHGU01

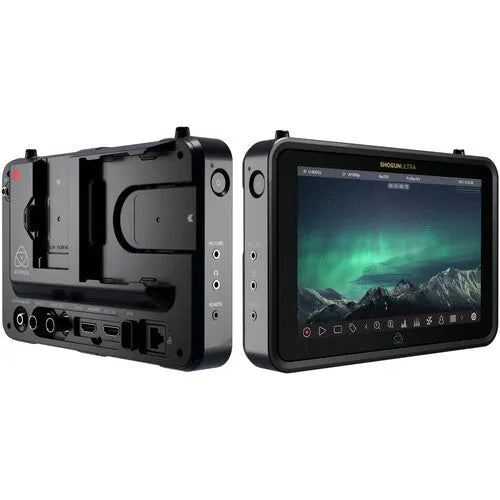

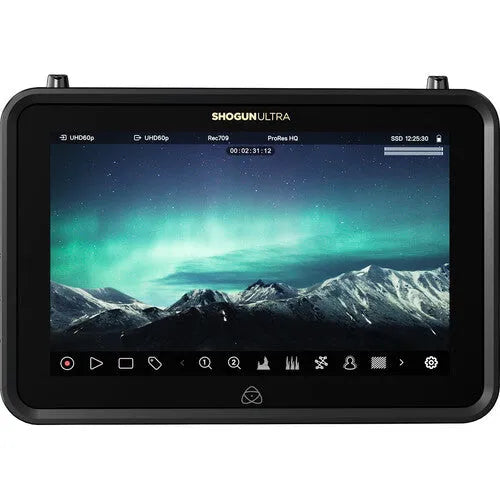

Atomos 7" Shogun Ultra Monitor-Recorder

Dhs. 4,499.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description
Key Features
  • AtomOS 11, 12G-SDI/HDMI Conversion
  • 7" 1920 x 1080 Touchscreen
  • Records up to 8K Apple ProRes Raw
  • ProRes Raw + H.265 Dual Recording
  • AirGlu RF Wireless Sync, GigE, 6E Wi-Fi
  • 2000 cd/m² Brightness
  • ARRI/Canon/RED/Sony Camera SDI Support
  • AVID DNX QuickTime
  • Atomos RemoteView via Subscription
  • Optional NDI 4K TX Pro Mode 1-Off

Overview

The 7" Shogun Ultra Monitor-Recorder, the latest in the ATOMOS line of Shogun onboard camera video monitor-recorders, brings built-in network connectivity to your mirrorless, DSLR, and cine-style capture, enabling fast and productive workflows. Efficient cloud-based workflow options include dual ProRes RAW/H.265 recording for Camera to Cloud, automated matching file names with popular cine-style cameras, and 4K H.265 capture for instant publishing from the cloud.

Partnering with industry-leading camera manufacturers ensures that the Shogun Ultra will work seamlessly with an increasingly wide range of cameras.

Key Specs

Display Size
7.0" / 17.8 cm
Native Resolution
1920 x 1200
Touchscreen
Yes
HDR Support
Yes, HDR10
Video I/O
1x HDMI 2.0 Input
1x BNC (12G-SDI) Input
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output
Media/Memory Card Slot
Single Slot: SSDmini/SSD with Master Caddy II/III
Video Format
HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
8K Raw: 30
6K Raw: 60/30
4K Raw: 120
DCI 4K: 60
UHD 4K: 60
DCI 2K: 60
1080p: 120
1080i: 60/50
720p: 60
Phantom Power
No
Built-In Battery
No
Battery Type
1x L-Series
Mounting
3x 1/4"-20 Female
3x 3/8"-16 Female
Display
Panel Type
IPS-Type LCD
Display Size
7.0" / 17.8 cm
Native Resolution
1920 x 1200
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
2000 nits / cd/m2
Color Support
1.07 Billion Colors (10-Bit)
HDR Support
Yes, HDR10
Pixels Per Inch (ppi)
325 ppi
Color Gamut
100% DCI-P3
100% Rec. 2020
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra
Inputs / Outputs

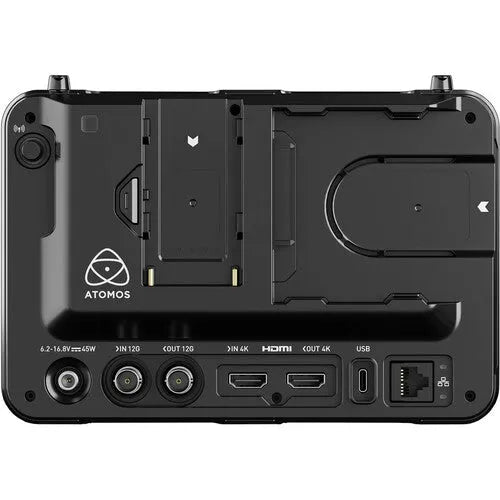

Video I/O
1x HDMI 2.0 Input
1x BNC (12G-SDI) Input
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output
Embedded Audio
HDMI: 8-Channel
SDI: 24-Channel

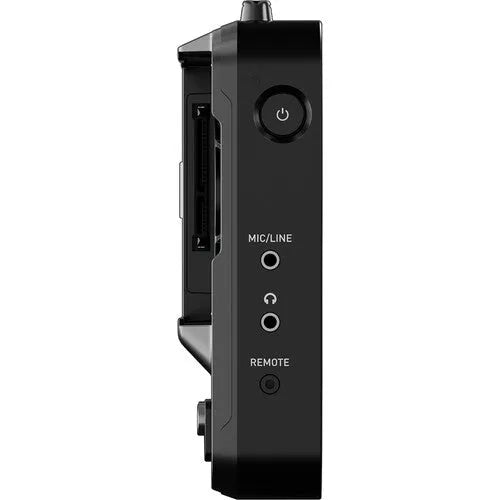

Audio I/O
1x 1/8" / 3.5 mm Headphone Output
1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Output
Built-In Speaker
No
Power I/O
1x Barrel Input
Other I/O
1x 2.5 mm (LANC)
1x USB-C (Serial) Input
1x RJ45 (Gigabit Ethernet) Input
Media/Memory Card Slot
Single Slot: SSDmini/SSD with Master Caddy II/III
File System Support
exFAT
Wi-Fi
Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth
Yes
Mobile App Compatible
Yes: Android & iOS
App Name: AtomRemote
Functionality: Adjust Settings, Setup
Format Support
Video Format
HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
8K Raw: 30
6K Raw: 60/30
4K Raw: 120
DCI 4K: 60
UHD 4K: 60
DCI 2K: 60
1080p: 120
1080i: 60/50
720p: 60
Gamma Curve
ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2
Video Signal Conversion
HDMI to SDI

SDI to HDMI
Timecode Support
Yes
Recording
Pulldown Conversion
No
Camera Trigger
SDI, HDMI
Pre-Roll Record
No
Encoding Formats
x
DNxHD
H.265
ProRes
Metadata Tagging
Yes
Phantom Power
No
Power
Input Power
6.2 to 16.8 VDC
Built-In Battery
No
Battery Type
1x L-Series
Mounting
Mounting
3x 1/4"-20 Female
3x 3/8"-16 Female
General
Material of Construction
Aluminum, Polycarbonate
Dimensions
7.8 x 5.2 x 1.6" / 198 x 133 x 40 mm
Weight
1.61 lb / 730.00 g
Packaging Info
Package Weight
3.015 lb
Box Dimensions (LxWxH)
10.4 x 7.7 x 3.6"

What's in the Box:
  • Atomos 7" Shogun Ultra Monitor-Recorder
  • USB-C PD to DC Adapter Cable
  • AtomX SSDmini Handle
  • MasterCaddy III
  • RF Antenna
  • 2 x Wi-Fi Antenna with Black Cap
  • 5 x Colored Antenna Cap
  • 3 x Antenna Mount Cover
  • 3.5mm Audio Jack Cable
  • Limited 1-Year Manufacturer Warranty
