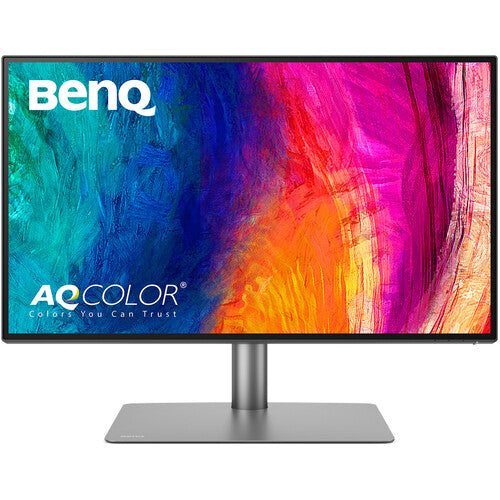

BenQ PD2725U DesignVue Designer 27" 16:9 HDR 4K IPS Monitor

Key Features

• 27" In-Plane Switching (IPS) Panel
• Thunderbolt 3 | HDMI | DisplayPort
• 3840 x 2160 at 60 Hz Native Resolution
• 1200:1 Static Contrast Ratio
• 250 cd/m² Brightness
• 178/178° Viewing Angles
• 5 ms Response Time (GtG)
• 1.07 Billion Colors with HDR10
• 100% sRGB & Rec. 709 and 95% DCI-P3
• USB 3.1 Gen 2 Hub | Speakers | 3.5mm


Overview

The BenQ PD2725U DesignVue Designer 27" 16:9 HDR 4K IPS Monitor has been built to satisfy designers' needs for color performance, with support for 100% of the sRGB and Rec. 709 color gamuts, 95% of the DCI-P3 color gamut, and HDR10. Driven by BenQ's AQCOLOR technology and an Ultra HD 4K resolution of 3840 x 2160 with a 60 Hz refresh rate, the PD2725U helps deliver improved accuracy and productivity tailored for specific tastes. It does this using three special modes—CAD/CAM, Animation, and Darkroom—each of which is tailored for different scenarios, allowing users in different fields to achieve similar results.

The PD2725U features In-Plane Switching (IPS) technology, an anti-glare panel coating, support for 1.07 billion colors (8-bit + FRC), a widescreen 16:9 aspect ratio, a static contrast ratio of 1200:1, a typical brightness 250 cd/m² and a peak HDR brightness of 400 cd/m², 163 ppi, and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. There are also two HDMI 2.0 inputs, one DisplayPort 1.4 input, and two Thunderbolt 3 ports that each support DP alt mode for daisy-chaining multiple displays and data transfers. One Thunderbolt 3 port supports devices charging up to 65W, while the other supports it up to 15W. Additional connectivity is achieved using two USB 3.1 Gen 2 Type-A ports (downstream) and one USB 3.1 Gen 2 Type-B port (upstream). Audio can be output using the dual integrated 2.5W speakers or the 3.5mm headphone jack.

BenQ's PD2725U also supports HDCP 2.2, Flicker-Free technology, Low Blue Light technology, Picture in Picture (PiP), Picture by Picture (PbP), and more. To further help improve viewing and accessibility, it features a vertical tilt of -5 to 20°, a left/right swivel of ±30°, a clockwise/counterclockwise pivot of 90°, a height adjustment of 5.91", and a 100 x 100mm VESA mount. It is certified for Mac, Windows 10, 8.1, 8, and 7, SolidWorks, and Calman.

Please note that the USB ports will only operate with data transmission speeds of 10 Gb/s USB 3.1 Gen 2 when using the Thunderbolt 3 video input. If DisplayPort or HDMI is used, the data transmission speeds will operate at 5 Gb/s USB 3.1 Gen 1.
