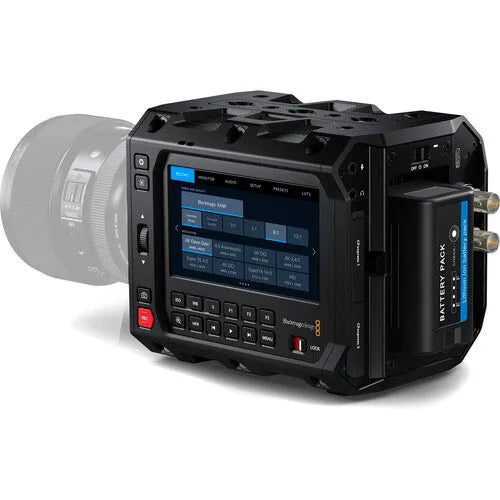

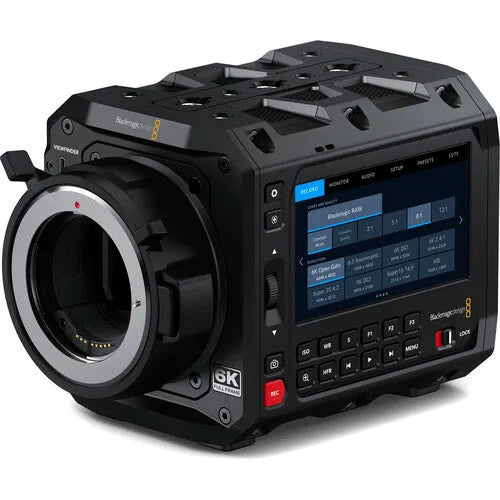

Blackmagic Design PYXIS 6K Cinema Box Camera

The Blackmagic Design PYXIS 6K Cinema Box Camera takes the digital film innovations of the Blackmagic Design Cinema Camera 6K and turns it into a box-style cinema camera with a lockable Canon EF lens mount and customizable side plates. A full-frame 6K sensor captures rich colors, accurate skin tones, and a wide 13-stop dynamic range with its expanded 36 x 24mm sensor. Record both Blackmagic RAW and H.265 proxy files to the cloud or even stream directly to your social media platform of choice via Ethernet or mobile 4G/5G technology. The PYXIS can film up to 6K Open Gate 3:2 video at 36 fps or 6K Anamorphic 6:5 video at 60 fps, among other selectable resolutions.

Lens Mount	Canon EF
Sensor Resolution	Not Specified by Manufacturer
Image Sensor	36 x 24 mm (Full-Frame) CMOS
Image Stabilization	No
ISO Sensitivity Range	400 to 3200
Internal Recording Modes	Blackmagic RAW 6048 x 4032 [75 to 555 MB/s] 4832 x 4032 [60 to 445 MB/s] 6048 x 3200 [60 to 441 MB/s] 4096 x 3072 [39 to 288 MB/s] 6048 x 2520 [47 to 348 MB/s] DCI 4K (4096 x 2160) [28 to 203 MB/s] 2112 x 1184 [9 to 59 MB/s] 1920 x 1080 [8 to 49 MB/s] Show Less
External Recording Modes	SDI/BNC 6048 x 4032 6048 x 3200 4096 x 3072 6048 x 2520 4096 x 2160 1920 x 1080 Show Less
Media/Memory Card Slot	Dual Slot: CFexpress Type B
Video I/O	1x BNC (12G-SDI) Output
Mobile App Compatible	No
Battery Type	Sony BP-U Series

Media/Memory Card Slot	Dual Slot: CFexpress Type B
Video I/O	1x BNC (12G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Input 1x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
Power I/O	1x LEMO 2-Pin (12VDC) Input
Other I/O	2x USB-C 1x BNC (Reference, Timecode) 1x RJ45 (10 Gigabit Ethernet)
Wireless	Bluetooth
Mobile App Compatible	No
Global Positioning (GPS, GLONASS, etc.)	No

Dimensions (W x H x D)	4.17 x 4.69 x 5.94" / 10.59 x 11.91 x 15.09 cm
Weight	3.3 lb / 1.5 kg (Body Only)



What's in the Box:

• Blackmagic Design PYXIS 6K Cinema Box Camera
• PYXIS Standard Mounting Plate
• PYXIS SSD Mounting Plate
• Lens Cap
• Power Supply with International Adapters (60W)
• DaVinci Resolve Studio Activation Key
• Limited 1-Year Manufacturer Warranty
