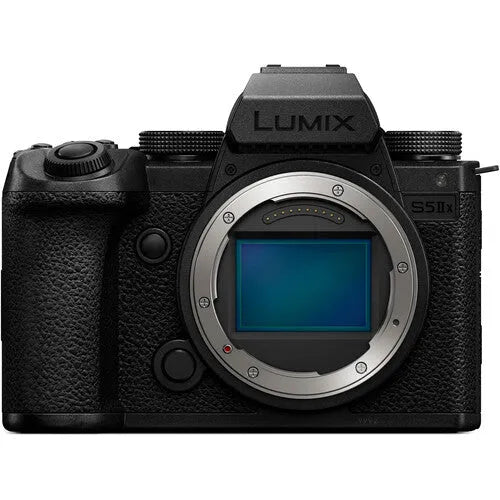

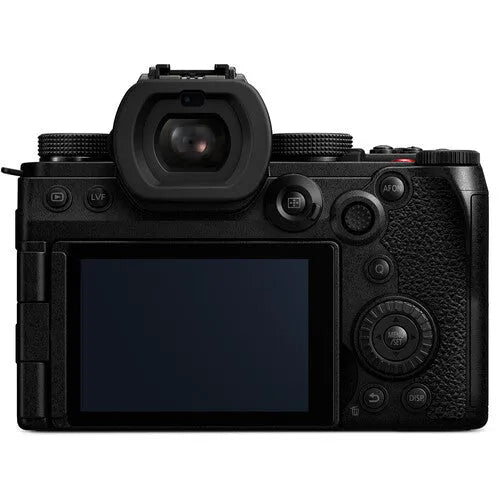

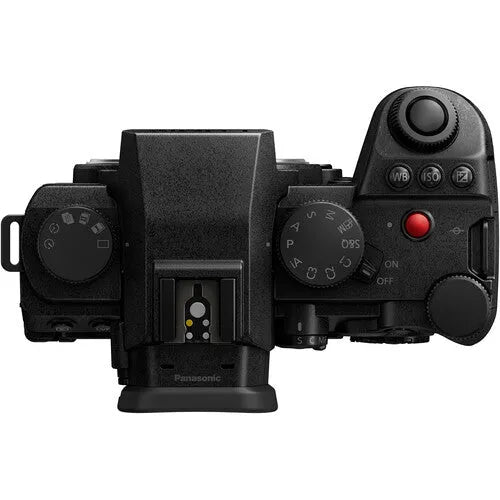

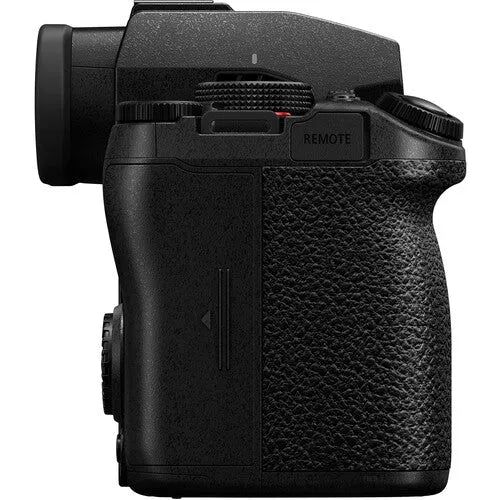

Panasonic Lumix S5 IIX Mirrorless Camera

Key Features

24.2MP Full-Frame CMOS Sensor

6K30p 4:2:0 10-Bit Video Recording

C4K/4K60p 4:2:2 10-Bit Unlimited

3.68m-Dot 0.78x-Magnification OLED LVF

Overview

Designed for pro content creators needing strong stills, sophisticated video options, and livestreaming functionality, the second-generation Panasonic Lumix S5 IIX Mirrorless Camera is equipped with a host of new features to bring your vision to life. Benefitting from a new sensor design and an updated processing engine with L2 technology, the S5 IIX is the first Lumix camera to offer Phase Hybrid AF for fast and precise autofocusing performance. Making full use of the 24.2MP sensor and enhanced processor, this camera records 6K video for up to 30 minutes, while unlimited 4K video capture is available as well. Optimized for video, the S5 IIX is also equipped with a new Active I.S. system, which supports walking shots to further enhance image stabilization while recording video.

Key Specs

Lens Mount	L-Mount
Sensor Resolution	Actual: 25.28 Megapixel Effective: 24.2 Megapixel (6000 x 4000)
Image Sensor	35.6 x 23.8 mm (Full-Frame) CMOS
Image Stabilization	Sensor-Shift, 5-Axis
ISO Sensitivity Range	Photo/Video 100 to 51,200 (Extended: 50 to 204,800)
Continuous Shooting	Mechanical Shutter Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Electronic Shutter Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG)
Internal Recording Modes	H.264/H.265/MOV/MP4/ProRes 4:2:2/4:2:0 8/10-Bit 5952 x 3968 at 23.98/24.00/25/29.97 fps [200 Mb/s] 5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s] 5952 x 3136 at 23.98/24.00/25/29.97 fps [200 Mb/s] 4096 x 2160 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps [150 to 200 Mb/s] 3840 x 2160 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps [150 to 200 Mb/s] 1920 x 1080 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/100 fps [20 to 454 Mb/s]
External Recording Modes	10-Bit via USB 5776 x 3056 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97 fps 1920 x 1080 at 24.00/25/50 fps 12-Bit via HDMI 5888 x 3312 at 23.98/25/29.97 fps
Media/Memory Card Slot	Dual Slot: SD/SDHC/SDXC (UHS-II)
Video I/O	1x HDMI (Unspecified Signal) Output
Audio I/O	1x 1/8" / 3.5 mm TRRS Headphone/Mic Microphone Input 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output
Power I/O	1x USB-C Input
Other I/O	1x USB-C Data Output (Shared with Power Input)
Wireless	2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0
Display Type	Free-Angle Tilting Touchscreen LCD
Battery Type	1x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 370 Shots)
