Mackie  |  SKU: 2051301-00

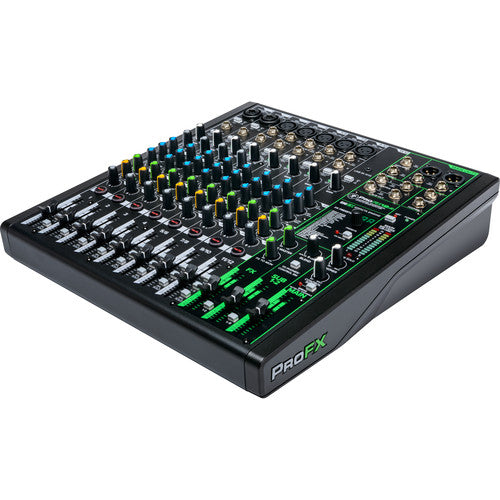

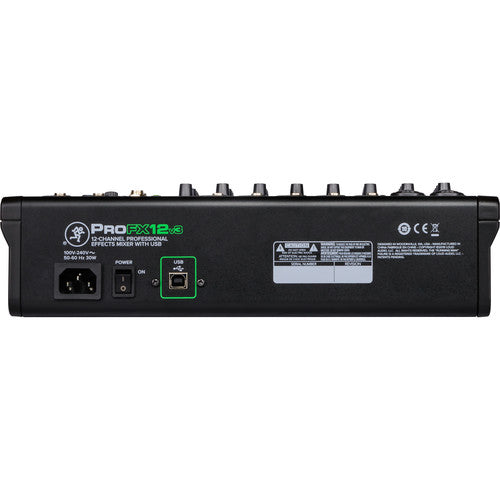

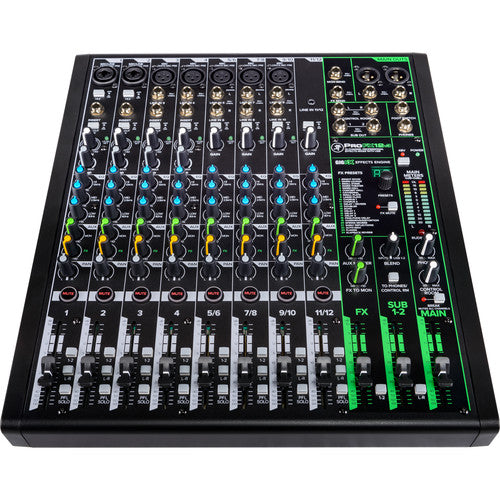

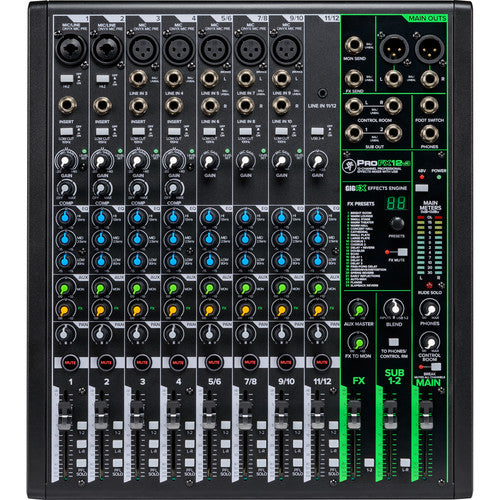

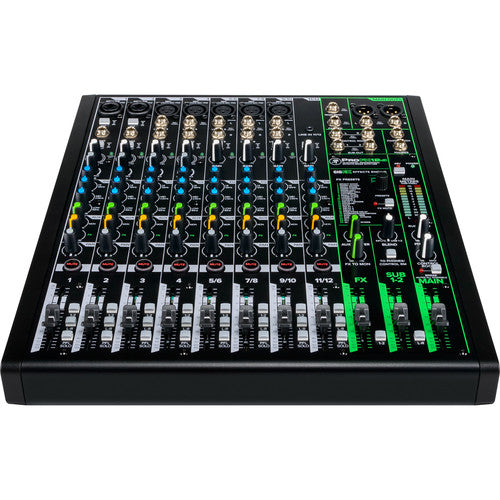

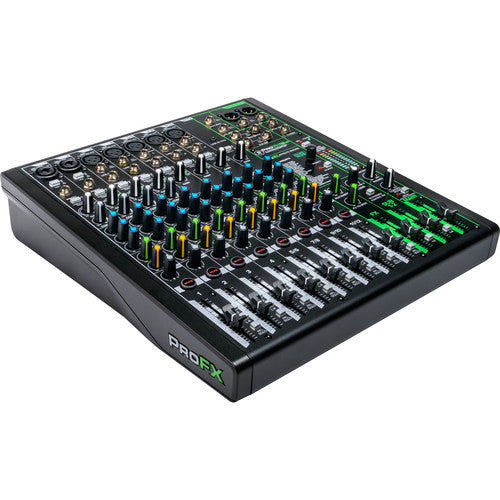

Mackie ProFX12v3 12-Channel Sound Reinforcement Mixer with Built-In FX

Dhs. 1,699.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description
Key Features
  • 7 Mic/Line Inputs (Comp 1-4)
  • 3 Mono/Stereo Line Inputs + 3.5mm Input
  • 2-In / 4-Out USB (24-Bit, 192 kHz)
  • Gig FX Effects Engine (24 FX Presets)
  • Main XLR & 1/4", Sub, CR Outputs
  • 4 Onyx Mic Preamps with 48V Phantom
  • 3-Band EQ, Aux + FX Sends, Pan, Mute
  • Footswitch, FX Send, Headphone Output
  • Includes Power Supply

Overview

The Mackie ProFX12v3 is a 12-channel mixing console featuring seven Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and a Hi-Z switch (for guitar and bass), while channels 3-4 offer XLR or 1/4" inputs. Channels 1-4 include inserts, and single-knob compression. Channels 5/6, 7/8, 9/10 offer two 1/4" inputs, while channel 11/12 uses a 3.5mm stereo input. Channels 1-10 feature gain controls, a 3-band EQ, an aux (monitor) send, a dedicated FX send, pan, mute, and level faders. Engaging channel 11/12's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer.

Each channel strip includes button selectors for Main L/R, Sub 1/2, and Solo (PFL). The master section offers dedicated faders for Main, Sub, and FX. Main output connectors include both XLR and 1/4", while sub and control room outputs use 1/4" connector. A dedicated 1/4" TRS headphone output includes its own independent level control. Other features include an input / USB 1-2 blend control, a dedicated FX output, an FX level fader, and an FX mute, which can also be controlled via the 1/4" footswitch input.

Key Specs

Number of Analog Input Channels
12 (4 Mono / 4 Stereo)
Number of Mic Preamps
7
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Bus/Subgroup Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Mix Routing
Stereo Main Mix
Stereo Aux Bus/Subgroup
EQ
3-Band EQ
Built-In Effects
24x Effect (Type Unspecified)
USB I/O
1x USB-B 2.0()
Wireless
No
Rack Mountable
No
Number of Mic Preamps
7
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Bus/Subgroup Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Mix Routing
Stereo Main Mix
Stereo Aux Bus/Subgroup
Faders & Level Adjustment
No
Meters
Main Meter:
2x 12-Segment LED
Gain/Trim Range
-20 dB to +60 dB
EQ
3-Band EQ
EQ Parameters
Low: ±15 dB at 80 Hz
Mid: ±15 dB at 2.5 kHz
High: ±15 dB at 12 kHz
Filters
High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects
24x Effect (Type Unspecified)
Bit Depth
24-Bit
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
+22 dB
I/O Impedance
Mic Input:
3.3 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Noise Floor
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.03% (+4 dBu)
Analog Inputs
2x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input
5x XLR 3-Pin Balanced Mic Input
5x 1/4" TRS Balanced/Unbalanced Line Input (5 Stereo Pairs)
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input (1 Stereo Pair)
1x 1/4" TRS Footswitch Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output
2x 1/4" TRS Balanced Stereo Main Output
2x 1/4" TRS Balanced Stereo Control Room/Monitor Output (1 Stereo Pair)
2x 1/4" TRS Balanced Stereo Subgroup Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Aux/Monitor Send
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B 2.0()
USB I/O Capacity
2x Input / 4x Output
Wireless
No
Compatibility
OS Compatibility
macOS / Windows
OS Compatibility
macOS
Windows
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
No
Dimensions
3.9 x 13 x 14.8" / 8.1 x 33 x 37.5 cm
Weight
7.9 lb / 3.6 kg
Packaging Info
Package Weight
11.3 lb
Box Dimensions (LxWxH)
18.6 x 15.11 x 5.1"

What's in the Box:

  • Mackie ProFX12v3 12-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
