Yamaha | SKU: MG16

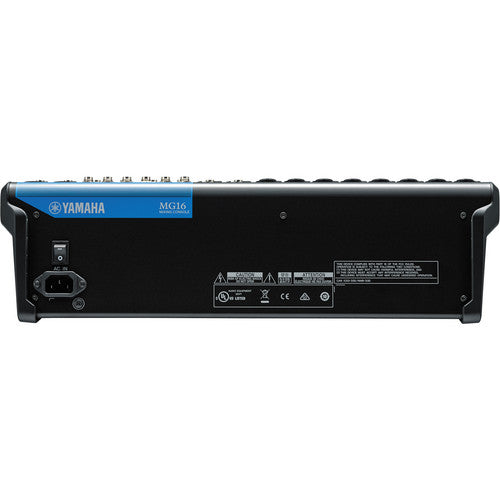

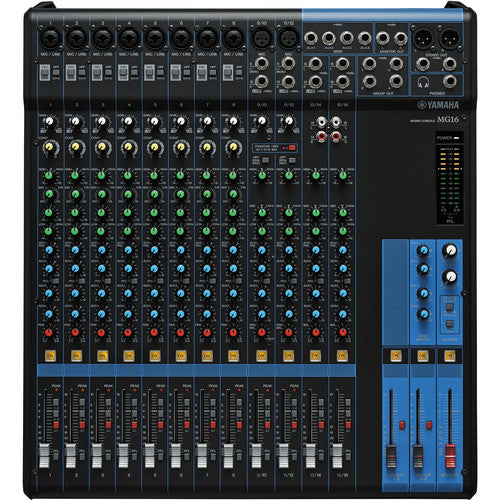

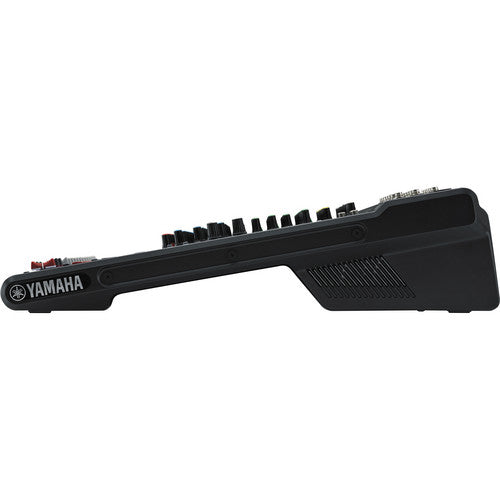

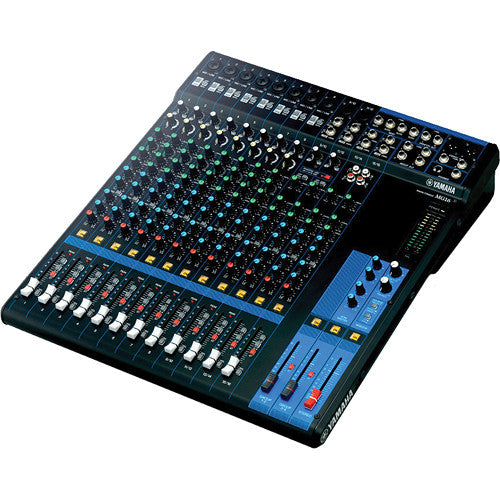

Yamaha MG16 - 16-Input Mixer

Name: Yamaha MG16 - 16-Input Mixer
Brand: Yamaha
SKU: MG16
Price: 2099.00 AED
Availability: InStock

Dhs. 2,099.00

Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

Credit card & Tabby
Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features

10x Mic Inputs
16x Line Inputs
XLR and TRS 1/4" Stereo Outs
4x Group Buses
TRS Monitor Outs
4x Aux Sends
"D-PRE" Mic Preamps with 48V Phantom
HPF & 3-Band EQ on Channels 1-8
1/4" Headphone Output with Level Control
PAD & 1-Knob Compressor on Channels 1-8

Overview

The MG16 from Yamaha is a compact mixer capable of sixteen simultaneous inputs and is ideal for performances, recordings lectures and more. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks.

Channels 1-12 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-8 each also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums.

The MG16 mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.

Key Specs

Phantom Power	+48 V switchable, channels 1 - 12
Input Channels	8x mono [mic/line] 2x mono/stereo [mic/line] 2x stereo [line]
Output Channels	2x stereo out 1x monitor out 1x headphone out 4x aux out 4x group out
Bus	Stereo: 1 AUX: 4 GROUP: 4
Pad	26 dB (mono)
HPF	80 Hz, 12 dB/oct (mono/stereo: MIC only)
Compressor	Threshold: +22 dBu to -8 dBu Ratio: 1:1 to 4:1 Output level: 0 dB to 7 dB Attack time: approx. 25 msec Release time: approx. 300 msec
Equalizer	EQ high gain: +15 dB/-15 dB, frequency: 10 kHz shelving EQ mid gain: +15 dB/-15 dB, frequency: mono 250 Hz - 5 kHz peaking EQ low gain: +15 dB/-15 dB, frequency: 100 Hz shelving
LED	Peak LED turns on when post EQ signal reaches 3 dB below clipping
Total Harmonic Distortion	0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min
Frequency Response	+0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent Input Noise	-128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max)
Residual Output Noise	-102 dBu (STEREO OUT, STEREO master fader: min)
Crosstalk	-78 dB
Power Requirement	AC 100 - 240 V, 50 / 60 Hz
Power Consumption	30 W
Dimensions	17.5 x 5.1 x 19.7" (444 x 130 x 500 mm)
Net Weight	14.6 lb (6.6 kg)

Packaging Info

Package Weight	19.9 lb
Box Dimensions (LxWxH)	21.9 x 20.4 x 8.4"

What's in the Box:

Yamaha MG16 - 16-Input Mixer
AC Adapter
Rack-Mount Kit
Limited 1-Year Manufacturer Warranty
