Yamaha  |  SKU: MGP24X

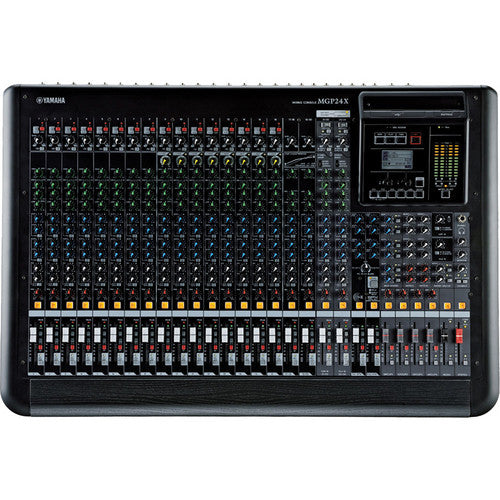

Yamaha MGP24X 24-Channel Analog Mixing Console with DSP Effects

Dhs. 6,299.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• Saudi Arabia: 3-5 working days via DHL/ Aramex. The customer is responsible for all import customs and duty charges at the time of delivery (Approx. 50-200 SAR).

• Rest of GCC: 3-5 working days via DHL/ Aramex. The customer is responsible for all import customs and duty charges at the time of delivery.

Description
Key Features
  • 16 D-Pre Mic Preamps with Phantom Power
  • 24 Line Inputs, 6 AUX, & 2 FX Sends
  • iPhone/iPod Control & Connectivity
  • Record to USB Storage as WAV or MP3
  • X-pressive 3-Band EQ Per Channel
  • 1-Knob Compression
  • Auto-Ducker, Auto-Leveler
  • 3 Types of Reverb, 16 Digital Effects

Overview

The MGP24X 24-Channel Analog Mixing Console with DSP Effects from Yamaha is a 24-track analog mixer with digital control and features 16 D-Pre microphone preamps, 24 line inputs, 6 auxiliary inputs, and 2 effects sends. It is designed for use in live sound environments, including clubs and houses of worship.

Each channel has Yamaha's X-pressive 3-band equalizer and 1-Knob compressor, allowing channel-independent frequency and dynamic control. The MGP24X has an integrated DSP Hybrid Channel section that includes 3 types of reverb and 16 effects, as well as auto-ducker and auto-leveler functions that allow for hands-off monitoring of sources. The digital portion of the MGP24X also allows for iPhone and iPod touch control of a variety of parameters via the free MGP Editor app. You can also playback music from your iTunes catalog via the iOS input USB port, freeing up an analog input on the console. A second USB port allows you to record your live performance directly to external USB media, as either a stereo WAV or MP3 file.



Key Specs

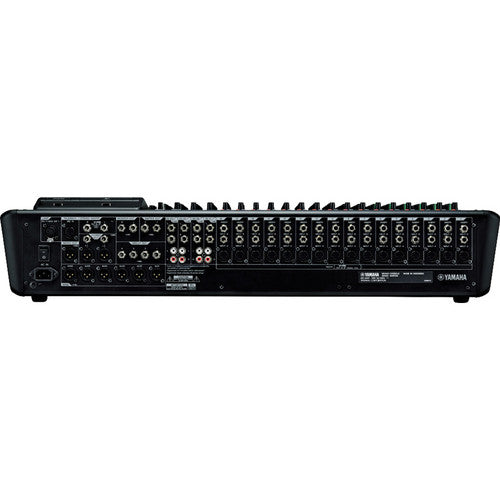

Input / Output
Inputs
16x Mic level XLRs
16x Line level 1/4" (6.35 mm) TRS
4x Stereo line level 1/4" (6.35 mm) TRS
16x 1/4" (6.35 mm) TRS Inserts
1x 1/4" (6.35 mm) stereo Return
Input Sensitivity
For Mono Inputs, Actual Source Impedance 3 kΩ:
Mic Level @ -60 dB: -80 dBu (0.078 mV), for 50-600 Ω Mics
Mic Level @ -16 dB: -36 dBu (12.3 mV), for 50-600 Ω Mics
Line Level @ -34 dB: -54 dBu (1.55 mV), for 600 Ω Lines
Line Level @ 10 dB: -10 dBu (245 mV), for 600 Ω Lines

Stereo Channel Input, Actual Source Impedance 10 kΩ:
Line Level @ -34 dB: -54 dBu (1.55 mV), for 600 Ω Lines
Line Level @ 10 dB: -10 dBu (245 mV), for 600 Ω Lines

Mono Channel Inserts, Actual Source Impedance 10 kΩ: -20 dBu (77.5 mV), for 600 Ω Lines

Stereo Channel Insert Input L,R, Actual Source Impedance 10 kΩ: -20 dBu (77.5 mV)

Talkback Input, Actual Source Impedance 10 kΩ: -66 dBu (0.389 mV), for 50-600 Ω Mics
Nominal Input Level
For Mono Inputs, Actual Source Impedance 3 kΩ:
Mic Level @ -60 dB: -60 dBu (0.775 mV), for 50-600 Ω Mics
Mic Level @ -16 dB: 16 dBu (123 mV), for 50-600 Ω Mics
Line Level @ -34 dB: -34 dBu (15.5 mV), for 600 Ω Lines
Line Level @ 10 dB: +10 dBu (2.45 V), for 600 Ω Lines

Stereo Channel Input, Actual Source Impedance 10 kΩ:
Line Level @ -34 dB: -34 dBu (15.5 mV), for 600 Ω Lines
Line Level @ 10 dB: 10 dBu (2.45 V), for 600 Ω Lines

Mono Channel Inserts, Actual Source Impedance 10 kΩ: 0 dBu (0.775 V), for 600 Ω Lines

Stereo Channel Insert Input L,R, Actual Source Impedance 10 kΩ: 0 dBu (0.775 V), for 600 Ω Lines

Talkback Input, Actual Source Impedance 10 kΩ: -50 dBu (2.45 mV), for 50-600 Ω Mics
Maximum Input Level
For Mono Inputs, Actual Source Impedance 3 kΩ:
Mic Level @ -60 dB: -40 dBu (7.75 mV), for 50-600 Ω Mics
Mic Level @ -16 dB: 4 dBu (1.23 V), for 50-600 Ω Mics
Line Level @ -34 dB: -14 dBu (155 mV), for 600 Ω Lines
Line Level @ 10 dB: 30 dBu (24.5 V), for 600 Ω Lines

Stereo Channel Input, Actual Source Impedance 10 kΩ:
Line Level @ -34 dB: -14 dBu (155 mV), for 600 Ω Lines
Line Level @ 10 dB: 30 dBu (24.5 V), for 600 Ω Lines

Mono Channel Inserts, Actual Source Impedance 10 kΩ: 20 dBu (7.75 V), for 600 Ω Lines

Stereo Channel Insert Input L,R, Actual Source Impedance 10 kΩ: 20 dBu (7.75 V), for 600 Ω Lines

Talkback Input, Actual Source Impedance 10 kΩ: -30 dBu (24.5 mV), for 50-600 Ω Mics
Outputs
1x XLR Stereo out (L,R)
6x XLR auxiliary sends
16x 1/4" (6.35 mm) Channel insert outputs
1x 1/4" (6.35 mm) Monitor out (L,R)
4x 1/4" (6.35 mm) Group out
1x 1/8" (3.5 mm) headphones out
1x 1/4" (6.35 mm) Stereo insert (L,R)
2x 1/4" (6.35 mm) Matrix outs
1x XLR Mono out
Nominal Output Level
Stereo Out (L,R): 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)
Mono Out: 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)
Group Out (1 to 4): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Aux Send (1 to 6): 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)
Matrix Out (1,2): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Mono Channel Insert Out (1 to 16): 0 dBu (0.775 V) @ 75 Ω (for use with nominal 10 kΩ lines)
Stereo Channel Insert Out (L,R): 0 dBu (0.775 V) @ 75 Ω (for use with nominal 10 kΩ lines)
Monitor Out (L,R): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Phones Out: 3mW @ 150 Ω (for use with nominal 40 Ω phones)
Maximum Output Level
Stereo Out (L,R): 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)
Mono Out: 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)
Group Out (1 to 4): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Aux Send (1 to 6): 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)
Matrix Out (1,2): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Mono Channel Insert Out (1 to 16): 20 dBu (7.75 V) @ 75 Ω (for use with nominal 10 kΩ lines)
Stereo Channel Insert Out (L,R): 20 dBu (7.75 V) @ 75 Ω (for use with nominal 10 kΩ lines)
Monitor Out (L,R): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Phones Out: 75 mW @ 150 Ω (for use with nominal 40 Ω phones)
General
Total Harmonic Distortion
0.02% (20 Hz to 20 kHz, 14 dBu)
Frequency Response
20 Hz to 20 kHz, +0.5/-1.0 dB, refer to the nominal output level @ 1 kHz
Crosstalk
-74 dB @ 1 kHz
Power Supply
100 to 240 V, 50/60 Hz
Power Consumption
76 W, maximum
Dimensions
32.2 x 6.7 x 22.2" (819 x 169 x 565 mm)
Weight
34.2 lb (15.5 kg)
Packaging Info
Package Weight
49.4 lb
Box Dimensions (LxWxH)
37 x 27.5 x 10"



What's in the Box:

  • Yamaha MGP24X 24-Channel Analog Mixing Console with DSP Effects
  • Limited 1-Year Manufacturer Warranty
