Sound Devices CL-16 Linear Fader Control Surface for 888 and Scorpio Mixer-Recorders

• Control Channels, Busses, EQ, Pan & More
• 16 x 100mm Faders
• 32 x Multifunction Controls
• USB Connection for Mixer-Recorder
• Easy-to-Read LCD
• 5 x User-Assignable Buttons
• 5 x USB Ports on Rear for Charging
• 10-Pin Remote Input & 1/4" Footswitch In
• Includes USB Cable
• Includes 1/4" Cable for Footswitch


Overview

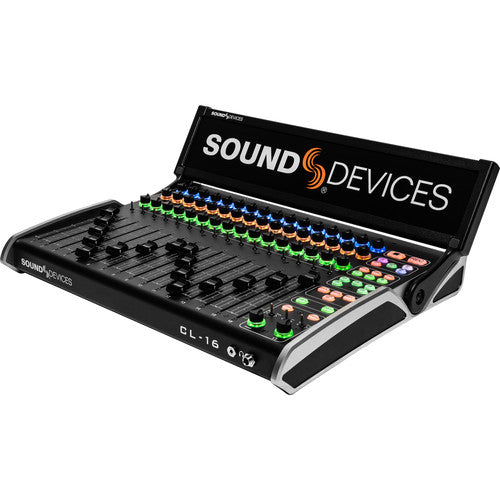

Designed for 8-series or Scorpio mixers, the Sound Devices CL-16 is a mixer controller that combines the functionality of a traditional channel strip with the power and versatility of modern digital mixers. Once you connect it to your mixer-recorder via the included USB Type-B to USB Type-A cable, you can use the CL-16 to control channels, outputs, menus, metadata, and even on-set communications, and thus, improve the experience of cart-based location mixing.

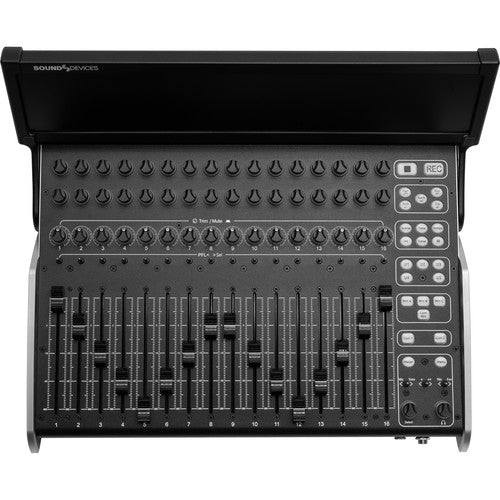

The CL-16 provides 16 Penny & Giles 100mm linear faders, which are considered some of the smoothest faders around. The unit also offers 16 dedicated trim pots and a panoramic LCD screen that is readable in sunlight. This display will handle much of the necessary read-out information from your 8-series mixer-recorder.

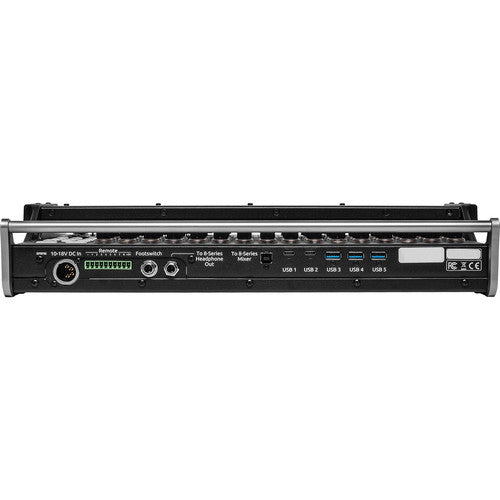

You'll find 32 multifunction controls for adjusting gains past channel 16, as well as for controlling bus gains, output gains, panning adjustments, and EQ. Five user-assignable buttons can be programmed to handle tasks you deem the most important, and built-in USB ports on the rear provide charging for phones, tablets, battery chargers, or other compatible gear. You'll find three USB Type-A and two USB Type-C ports.

Use the ten-pin remote input for custom wiring of LEDs and switches, and make use of the TRS footswitch input as well, for which a 1/4" cable has been supplied. You'll find two headphone jacks—one 1/4", and the other 3.5mm. Power the unit over the XLR 4-pin jack using any separately available compatible cord.

Specs

What's in the Box:

• Sound Devices CL-16 Linear Fader Control Surface for 888 and Scorpio Mixer-Recorders
• USB Type-A to Type-B Cable (6.6')
• 10-Pin Phoenix Screw Terminal Block
• 1/4" TRS Cable

• Limited 1-Year Manufacturer Warranty
