Soundcraft  |  SKU: 5056170

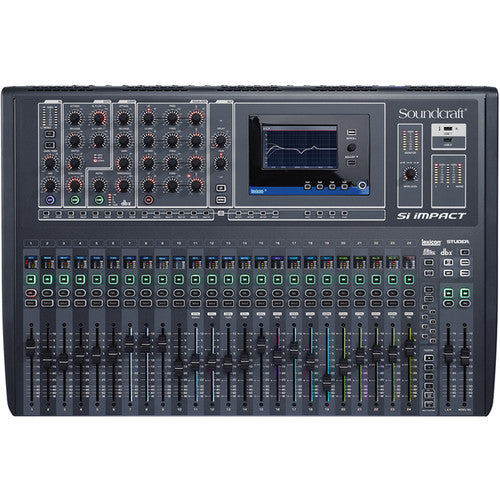

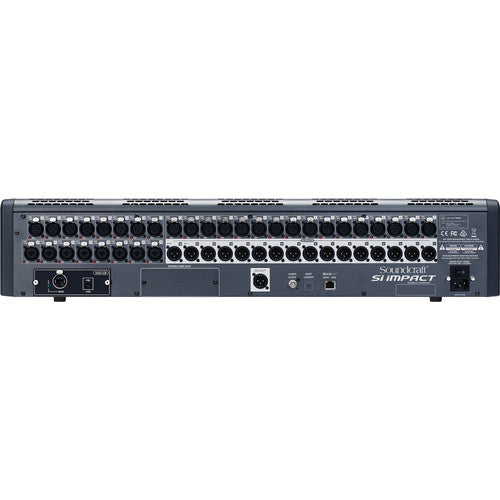

Soundcraft Si Impact 40-Input Digital Mixing Console and 32-In/32-Out USB Interface with iPad Control

Dhs. 17,999.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby (choose credit card option)
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description

Soundcraft Si Impact 40-Input Digital Mixing Console and 32-In/32-Out USB Interface with iPad Control


Key Features
  • 32 mic inputs
  • 8 XLR/1/4" combi-jacks for line inputs and instruments
  • 40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
  • 31 output busses (all with full DSP processing and GEQ)
  • 4-band fully parametric EQ on each channel and bus
  • 8 VCAs + 8 Mute groups
  • 26 motorized faders (24 input + LR/Mono)
  • 4 fully customizable fader layers
  • Built-in stagebox connectivity
  • 5" touchscreen display
  • Multi-color LCD channel displays on each input fader
  • 4 studio-grade Lexicon FX engines and dedicated FX busses
  • BSS graphic equalizers on every bus
  • 20 sub-group / aux busses
  • 4 mono/stereo matrix busses
  • 32x32 USB audio interface for multi-track recording and playback



Overview

The Soundcraft Si Impact is a 40-input digital mixing console and 32-in/32-out USB audio interface that supports remote iPad mixing using a proprietary app. The console is designed to be as simple as an analog mixer, but offers workflow enhancements such as the FaderGlow system, which illuminates each fader track in different colors to provide at-a-glance status information on precisely what the fader is controlling.

Featuring studio-grade reverbs, delays, and modulations from Lexicon, dbx dynamics, and BSS graphic equalizers, the Si Impact comes fully equipped to mix everything from rock bands to stage plays. Also a 32-in/32-out USB audio interface, the Si Impact mixer delivers professional digital recording directly to your DAW, and comes with a free download of Ableton Live Lite 9.



 Key Specs

Mixer
Number of Analog Input Channels
40
Signal Processing
Gain/Trim Range
Mic:
-5 dB to 58 dB (in 1 dB Steps)
Line:
-10 dB to +16 dB
Gate Parameters
Threshold: -60 to -6 dBFS
Depth: -60 to -3 dB
Attack: .1 ms to 200 ms
Release: 20 ms to 500 ms
Compressor Parameters
Threshold: -52 to -6 dBFS
Ratio: 1:1 to 20:1
Attack: .1 to 200 ms
Release: 5 to 900 ms
Makeup Gain: 0 to 24 dB
Sidechain Filters
Gate:
High-Pass: 22 Hz to 2.5 kHz
Low-Pass: 160 Hz to 20 kHz
EQ Parameters
HF Shelf:
±15 dB at 800 Hz to 20 kHz
MF Notch/Peak:
±15 dB at 22 Hz to 20 kHz, 6 to 0.3 Q
LF Shelf:
±15 dB at 20 Hz to 500 Hz
Graphic EQ
28-Band 1/3 Octave, 31 Hz to 16 kHz
Filters
High-Pass: 40 Hz to 1 kHz
Audio Delay
Adjustable Up to 500 ms
Digital Audio
Sample Rates
AD/DA Conversion:
Up to 200 kHz
Bit Depth
AD/DA Conversion:
24-Bit
DSP
40-Bit Floating Point
Jitter
± 7 ns
Word Clock Input
48 kHz ±7 Hz
Latency
< 0.8 ms (Mic Input to Line Output)
< 0.6 ms (Analog Input to AES Output)
< 0.9 ms (Stagebox Input to Stagebox Output)
Performance
dBFS Reference Level
+21.5 dBu = 0 dBFS
Frequency Response
Mic/Line Input:
20 Hz to 20 kHz ±1.5 dB
Max Input Level
Mic Input:
+22 dBu
Line Input:
+22 dBu
Output Level
Mix Output:
+21.5 dBu (2901653168)
Headphone Output Power
300 mW into 150 Ohms
I/O Impedance
Mic Input:
3 Kilohms
Line Input:
10 Kilohms
Output:
150 Ohms (Balanced)
75 Ohms (Unbalanced)
Word Clock Output:
50 Ohms
Word Clock Input:
47 Ohms
AES3 Output:
110 Ohms
Crosstalk
Adjacent Channels:
< 120 dB
Adjacent Inputs:
-100 dB at 1 kHz
-85 dB at 10 kHz
CMRR
-80 dBu at Max Gain
EIN
-126 dBu at Max Gain (2901653041)
Noise Floor
< -86 dBu (at Unity Gain)
THD
< 0.01%
Power
Input Power
88 to 264 VAC, 50 / 60 Hz
Power Consumption
130 W (Maximum)
Physical
Operating Temperature
41 to 113°F / 5 to 45°C
Operating Humidity
0 to 90%
Storage Temperature
-4 to 140°F / -20 to 60°C
Dimensions
6.3 x 29.5 x 19.7" / 160 x 750 x 500 mm
Weight
44.1 lb / 20 kg
Packaging Info
Package Weight
53 lb
Box Dimensions (LxWxH)
35.5 x 26.5 x 12.5"



What's in the Box:

  • Soundcraft Si Impact 40-Input Digital Mixing Console and 32-In/32-Out USB Interface with iPad Control
  • Ableton Live Lite 9 (Download)
  • Limited 1-Year Manufacturer Warranty
