Soundcraft  |  SKU: 5049555

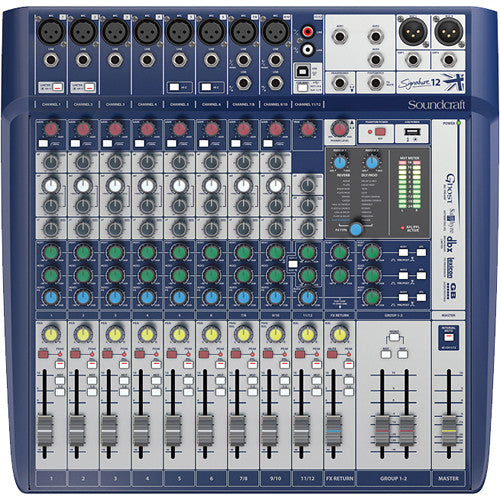

Soundcraft Signature 12 12-Input Mixer with Effects

Dhs. 2,049.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby (choose credit card option)
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description
Key Features

  • 12-Input Analog Mixer
  • 8 Ghost Mic Preamps
  • Sapphyre British EQ Per Channel
  • 2-in/2-out USB Recording
  • Lexicon Effects Engine
  • Switchable Hi-Z inputs
  • HPF & 48V on Mic Channels



Overview

The Signature 12 from Soundcraft is a 12-input analog mixer with onboard effects. The Signature 12 features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.



Key Specs

Channels
12
Preamps
8 x Ghost
Input Limiter
dbx: 2
Effects
Lexicon: Single engine
Faders
2" (60 mm)
Frequency Response
Mic / Line In to any Output: +/-1.5 dB, 20 Hz to 20 kHz
THD
Mono Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz
Stereo Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.007% @ 1 kHz
Noise
Mono Mic Input E.I.N. (max gain): <-126 dBu (150 Ohms source)
Stereo Mic Input E.I.N. (max gain): <-124 dBu (150 Ohms source)
Crosstalk
Channel Mute: >-90 dB
Fader Cut-off (rel +10 mark): >-90 dB
Aux Send Pots Offness: >-82 dB
EQ Section
EQ (Mono inputs)
HF: 12 kHz, +/-15 dB
MF (swept): 140 Hz to 3 kHz, +/-15 dB
LF: 60 Hz, +/-15 dB

EQ (Stereo inputs)
HF: 12 kHz, +/-15 dB
MF: 1 kHz, +/-15 dB
LF: 60 Hz, +/-15 dB
Input and Output Level
Mic Input: +12.5 dBu max
Line Input: >+26 dBu max
Stereo Inputs: >+26 dBu max
Mix Output: +21.5 dBu max
Headphones (@150 Ohms): 300 mW
Input and Output Impedance
Mic Input: 1.2 kOhms
Hi-Z Input: 968 kOhms
Line Input: 10 kOhms
Stereo Input: 21.5 kOhms
Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced)
USB Audio
Inputs/Outputs: 2-in, 2-out
Bit Depth: 16-bit, 24-bit
Sampling rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Operating Conditions
Temperature Range: 41 to 104°F / 5 to 40°C
Power Consumption
<60 VA
Dimensions
19.3 x 17.9 x 8.3" / 490.0 x 455.0 x 210.0 mm
Weight
12.5 lb / 5.7 kg



What's in the Box:

  • Soundcraft Signature 12 12-Input Mixer with Effects
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
