TASCAM | SKU: MX-8A

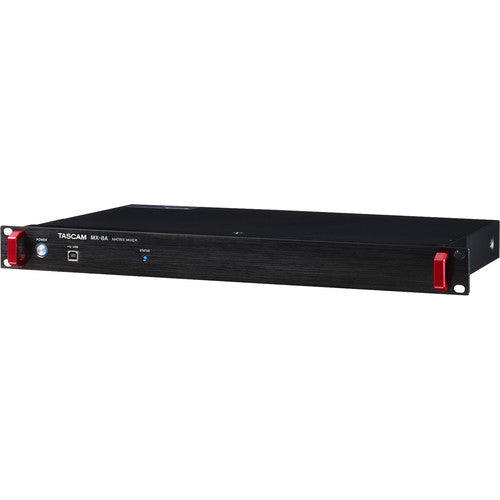

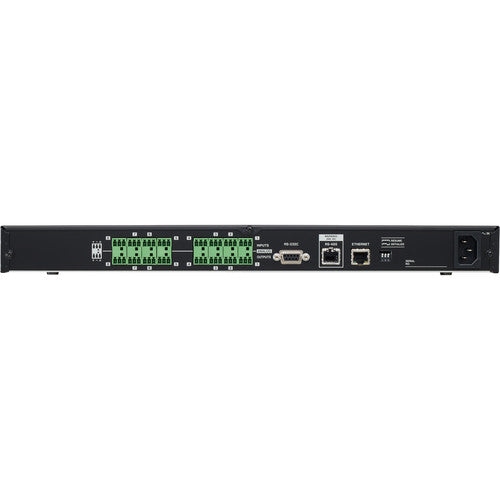

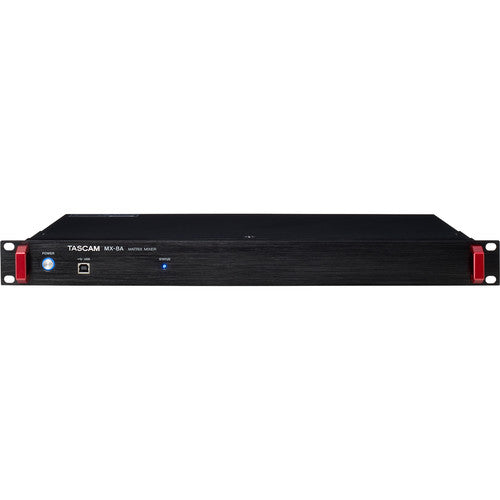

TASCAM MX-8A 8-Input / 8-Output Matrix Mixer with DSP

Name: TASCAM MX-8A 8-Input / 8-Output Matrix Mixer with DSP
Brand: TASCAM
SKU: MX-8A
Price: 4799.00 AED
Availability: InStock

Dhs. 4,799.00

Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

Credit card & Tabby
Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features

Microphone/Line Input Switching
48V Phantom Power
Mic Input Pad
Microphone Gain
Compressor
4-Band EQ
Auto Level Control
Mute, Fader, Grouping

Overview

The MX-8A 8-Input / 8-Output Matrix Mixer with DSP from Tascam features eight mic/line inputs and eight-line outputs on Euroblock connectors as well as integrated DSP for audio optimization in various environments and configurations. It can be used to mix mic and playback-equipment audio signals into eight different zones for easy setup and adjustment by both system integrators and end users, making it suitable for stores, restaurants, or banquet rooms.

The MX-8A's onboard DSP provides a full set of audio processing for mic and line inputs including compression, four-parametric EQ, auto level, ducking, and more. In addition, the output DSP offers 10-band EQ, high-pass filters, low-pass filters, delay, and limiter effects.

Additionally, Tascam's MX Connect remote control software is designed for integrators and provides control over the configuration and settings of the entire system. Tascam's EZ Connect software is designed for end-users and provides control over a variety of settings. The MX-8A 8-Input / 8-Output Matrix Mixer with DSP includes a power cord, sixteen Euroblock plugs, a cable band kit, and a rackmount screw kit.

Key Specs

Format	44.1 kHz / 48 kHz, 16-Bit / 24-Bit
Connector	4-Pin USB b-Type
Transfer Rate	USB 2.0 High-Speed (480 Mbps)
Analog In	Connector: Euroblock (Balanced) 3.81 mm Pitch
Minimum Input Level	-70 dBu
Maximum Input Levels	Microphone: +26 dBu Line: +24 dBu Input Impedance: 2.2 kOhms or Higher
Analog Output	Connector: Euroblock (Balanced) 3.81 mm Pitch
Nominal Output Level	+4dBu (When Ref.Level Set to Other Than -9 dBFS) +6dBu (When Ref.Level Set to -9 dBFS)
Maximum Output Level	Switchable: +15 dBu (Ref.Level: -9 dBFS) +18 dBu (Ref.Level: -14 dBFS) +20 dBu (Ref.Level: -16 dBFS) +22 dBu (Ref.Level: -18 dBFS) +24 dBu (Ref.Level: -20 dBFS)
Output Impedance	200 Ohms or Lower
RS-485	Connector: RJ-45 Cables: Category 5e or Faster STP Cables
Ethernet	Connector: RJ-45 Transmission Protocol: TCP/IP Ethernet Standard: 100BASE-TX Cables: Category 5e or Faster STP Cables
Power	AC 100 to 240 V, 50/60 Hz
Power Consumption	21 W
Operating Temperature Range	32 to 104°F / 0 to 40°C
Dimensions	19.0 x 1.8 x 12.0" / 48.3 x 4.5 x 30.4 cm
Weight	6.6 lb / 3.0 kg

Packaging Info

Package Weight	10.04 lb
Box Dimensions (LxWxH)	21.6 x 17.2 x 5.9"

What's in the Box:

TASCAM MX-8A 8-Input / 8-Output Matrix Mixer with DSP
Power Cord
16 x Euroblock Plugs
Cable Band Kit
Rackmount Screw Kit
Limited 1-Year Warranty for Parts, 90-Day Warranty for Labor
