Apogee | SKU: SYMPHONY DESKTOP

Apogee Electronics Symphony Desktop 10x14 USB Audio Interface

Name: Apogee Electronics Symphony Desktop 10x14 USB Audio Interface
Brand: Apogee
SKU: SYMPHONY DESKTOP
Price: 5699.00 AED
Availability: InStock

Dhs. 5,699.00

Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

Credit card & Tabby
Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features

Symphony Sound Quality in Desktop Format
Preamp Emulation, Hardware DSP, Plug-Ins
Easy Operation with Color Touchscreen
Two Stepped-Gain Preamps with 75 dB Gain
XLR-1/4" Mic/Line Inputs & 1/4" Hi-Z In
Two 1/4" Monitor Outputs
1/4" and 3.5mm Assignable Headphone Outs
Optical I/O for ADAT or S/PDIF
USB Type-C and USB Type-A Connectivity
Mac, Windows, and iPad Pro Compatible

Overview

Merging the sound quality of the rackmount Symphony I/O Mk II with the simplicity of the Duet and Quartet, the Apogee Electronics Symphony Desktop offers musicians and producers premium Apogee fidelity, flexible I/O, and powerful plug-in processing in a travel-friendly form factor.

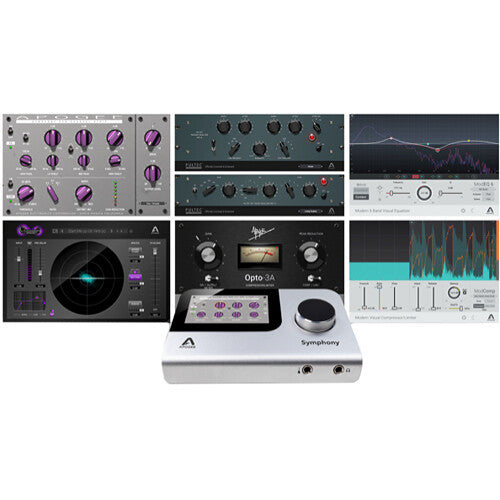

With emulations of vintage British and American mic preamps, DSP/native Apogee FX plug-ins, and multiple zero-latency plug-in workflows, the Symphony Desktop puts you in complete control of your tone. Thanks to its color touchscreen and large control knob, the Symphony Desktop provides easy operation and comprehensive visual feedback.

Record mic-, line-, or instrument-level signals through the variable-impedance, high-gain preamps and use the monitor outputs and assignable headphone jacks for listening to the main mix or an alternate source. Expand your setup by connecting external digital equipment to the optical TOSLINK ports, which support 8-channel ADAT or 2-channel S/PDIF protocols.

Key Specs

Channels of I/O	Analog: 2 Input / 6 Output at 192 kHz Digital: 8 Input / 8 Output at 48 kHz
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	2
Analog Audio I/O	2x Combo XLR-1/4" TRS Balanced Mic/Line Input 1x 1/4" TS Unbalanced Hi-Z Input (Front Panel) 1x 1/4" TRS Unbalanced Headphone Output (Front Panel) 2x 1/4" TRS Balanced Monitor Output 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O	1x TOSLINK Optical ADAT / S/PDIF Input 1x TOSLINK Optical ADAT / S/PDIF Output
Host Connection	1x USB-C
Power Requirements	AC/DC Power Adapter (Included)

Channels of I/O	Analog: 2 Input / 6 Output at 192 kHz Digital: 8 Input / 8 Output at 48 kHz
Built-In DSP	Yes
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	2
Built-In Microphone	No
Input Level Adjustment	1x Knob

Signal Processing

Pad	No
Gain/Trim Range	Mic Inputs: Up to +75 dB
High-Pass Filter	No
Solo/Mute	No

Connectivity

Analog Audio I/O	2x Combo XLR-1/4" TRS Balanced Mic/Line Input 1x 1/4" TS Unbalanced Hi-Z Input (Front Panel) 1x 1/4" TRS Unbalanced Headphone Output (Front Panel) 2x 1/4" TRS Balanced Monitor Output 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Phantom Power	48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O	1x TOSLINK Optical ADAT / S/PDIF Input 1x TOSLINK Optical ADAT / S/PDIF Output
Host Connection	1x USB-C
Host Connection Protocol	USB 2.0
USB (Non-Host)	1x USB-A (Update)
Sync I/O	No
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Wireless	No

Performance

Frequency Response	A/D Converters: 10 Hz to 20 kHz ±0.2 dB (at 44.1 kHz) D/A Converters: 10 Hz to 20 kHz ±0.05 dB (at 44.1 kHz)
Maximum Input Level	A/D Converters: +20 dBu (+4 dBu) +6 dBV (-10 dBV) Mic Inputs: +20 dBu Hi-Z Inputs: +14 dBu
Maximum Output Level	D/A Converters: +20 dBu (+4 dBu) +6 dBV (-10 dBV)
Headphone Output Power	520 mW into 30 Ohms (Max) 90 mW into 600 Ohms (Max)
Impedance	A/D Converters: 4 Kilohms D/A Converters: 50 Ohms Mic Inputs: 150 to 4000 Ohms Hi-Z Inputs: 220 Kilohms 470 Kilohms 20 Megohms Headphone Outputs: 0.5 Ohms
Dynamic Range	Headphone Outputs: 128 dB (A-Weighted) A/D Converters: 123 dB (A-Weighted) D/A Converters: 129 dB (A-Weighted)
THD+N	A/D Converters: -113 dB D/A Converters: -114 dB Headphone Outputs: -111 dB (600-Ohm Load)
EIN	Mic Inputs: 129 dB (150-Ohm Source, +60 dB Gain)

Digital Audio

Sample Rates	Up to 192 kHz
Sample Rate Conversion	No
Bit Depths	24-Bit
Sync Sources	ADAT, Internal, S/PDIF

Audio Storage & Playback

Media/Memory Card Slot

Compatibility

OS Compatibility	Computer: macOS 10.14 or Later / Windows 10 or Later Mobile: iPadOS Only
Processor Requirement	Intel Core i7
RAM Requirements	4 GB, 8 GB Recommended
Mobile Device Compatibility	iPad Pro (with USB-C) iPhone
Required Hardware	Available USB-A Port USB Cable (Included)

Power

Power Requirements	AC/DC Power Adapter (Included)
AC/DC Power Adapter	9 to 16 VDC (Included)
Power Consumption	30 W

Physical

Certifications	CE, FCC
Dimensions	8 x 4.75 x 2.5" / 20.3 x 12.06 x 6.3 cm
Weight	1.8 lb / 0.8 kg

Packaging Info

Package Weight	4.475 lb
Box Dimensions (LxWxH)	11.5 x 10.2 x 4.6"

What's in the Box:

Apogee Electronics Symphony Desktop 10x14 USB Audio Interface
12 VDC Power Supply with US, UK, EU, and SAA Power Adapters
USB Type-C to USB Type-C Cable
USB Type-C to USB Type-A Cable
USB Thumb Drive for Touchscreen Control Updates
Limited 1-Year Manufacturer Warranty
