Blackmagic Design  |  SKU: SWATEMMINIBPR

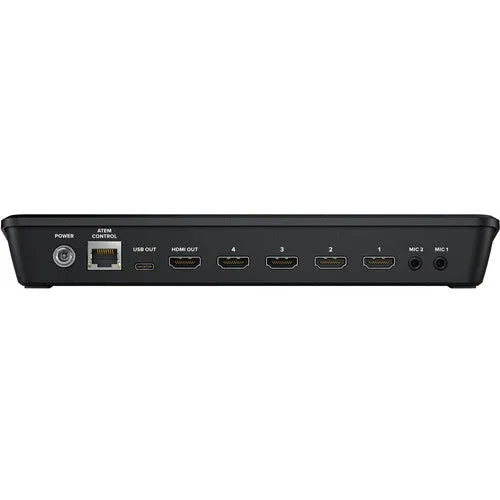

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher

Dhs. 1,199.00
Tax included Shipping calculated at checkout.


Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount or for smaller purchases, delivery fees will apply based on the destination.

Dubai: Delivery is within 1 business day.

Rest of UAE: Delivery typically takes up to 2-3 business days.

GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.


Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features
  • 4-Channel Live Stream HDMI Switcher
  • Control up to Four BMPCC 6K/4K Cameras
  • Live Tally, Stream and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer per Source
  • HDMI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support
  • Upstream and Downstream Keyers
  • Color and Pattern Generators
  • DVE Transition, Chroma/Luma Keyers



Overview

Similar to its predecessor, the ATEM Mini, the ATEM Mini Pro from Blackmagic Design is a four-input, live production switcher with an integrated control panel designed for multi-camera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Along with the software control update, the Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to utilize as your broadcast sources.

Key Specs

Available M/E Layers
5 M/E
Effect Types
1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys
1x Chroma, DVE
2x Luma
Audio Mixing
2-Channel Mixing
Processing
Switching Type
Pushbutton
Input
Number of Video Input Sources
4
Video Inputs
4x HDMI Female
Input Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Input
HDMI: 2-Channel (per Input)
Output
Video Output Channels
1
Video Outputs
1x HDMI
Output Video Format
HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output
HDMI: 2-Channel (per Output)
Multiview Output
Yes
Monitor Output
1x HDMI
Operating Conditions
41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C
Dimensions
9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
Weight
19.4 oz / 550 g



What's in the Box:

  • Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
  • 12V Power Supply with International Adapters
  • Limited 1-Year Manufacturer Warranty
