Blackmagic Design | SKU: SWATEMTVSTC/K4K8

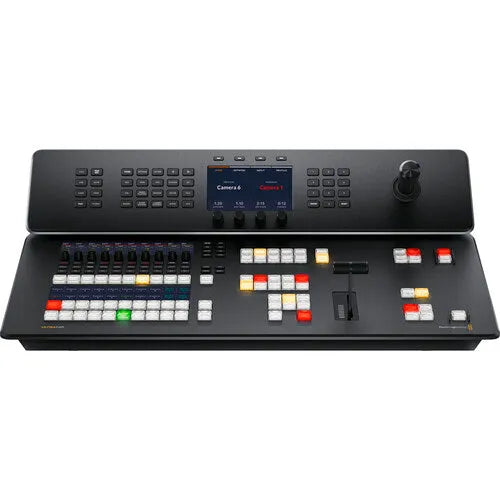

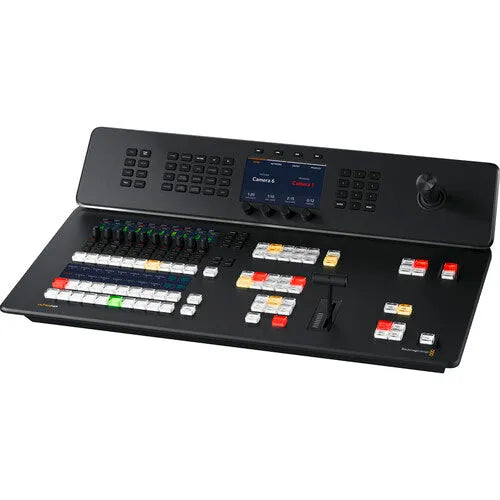

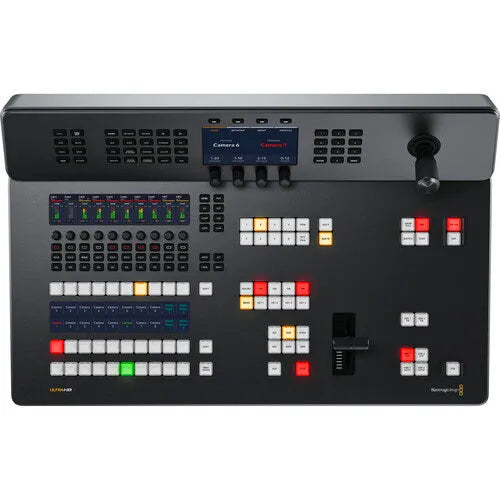

Blackmagic Design ATEM Television Studio 4K8

Name: Blackmagic Design ATEM Television Studio 4K8
Brand: Blackmagic Design
SKU: SWATEMTVSTC/K4K8
Price: 18799.0 AED
Availability: InStock

Dhs. 18,799.00

Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount or for smaller purchases, delivery fees will apply based on the destination.

• Dubai: Delivery is within 1 business day.

• Rest of UAE: Delivery typically takes up to 2-3 business days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features

8-Input 12G-SDI UHD 4K60 Live Switcher
Redesigned Buttons and Layout
Streaming Support, USB & M.2 Recording
Blackmagic Cloud Integration
Webcam Support, Runs Blackmagic OS
12G-SDI & HDMI Multiview Outputs
Audio Mixing, Transitions, T-Bar, AUX
Customizable Electronic LCDs
Studio Camera Control
Timecode, MADI, Talkback

Overview

Add an all-in-one live streaming switcher to your television studio, remote production, or live venue with the ATEM Television Studio 4K8 from Blackmagic Design. This compact, redesigned live TV switcher is a great fit to any streaming production, providing eight 12G-SDI inputs that support up to UHD 4K60 video, built-in live streaming, USB webcam support, a 58-channel audio mixer, chroma keyers, DVE, transitions, media players, internal recording, and talkback support. The switcher is also compatible with the Blackmagic Cloud, so your program recordings can be available immediately from anywhere around the globe.

Key Specs

Available M/E Layers	1 M/E
Effect Types	1x DVE, Stinger 4x Chroma Key 7x Luma Key
Downstream Keys	2x Chroma, Luma, DVE
Generators	7x Pattern 2x Color
Audio Mixing	58-Channel Mixing

Processing

Switching Type	Pushbutton, Software, T-Bar
Latency	10 Lines
Processing Resolution	UHD 4K at 60
Color Processing	10-Bit 4:2:2 RGB

Input

Number of Video Input Sources	8
Video Inputs	8x BNC (12G-SDI) Female
Input Video Format	SDI (10-Bit 4:2:2 RGB) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Inputs	1x BNC MADI Female 1x 2RCA Stereo Analog Female 2x XLR 3-Pin Analog Female 1x XLR 5-Pin Female
Embedded Audio Input	SDI

Output

Video Output Channels	12
Video Outputs	12x BNC (12G-SDI) Female
Output Video Format	SDI (10-Bit 4:2:2 RGB) UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Outputs	4x 1/4" TRS Analog Female 1x BNC MADI Female 1x XLR 5-Pin Analog Female
Embedded Audio Output	SDI
Multiview Output	16-Way Multiview
Monitor Output	1x HDMI

Connectivity

Other I/O	1x BNC Reference Input 1x BNC Reference Output 1x BNC Timecode 1x BNC Timecode 4x RJ45 LAN Input/Output 1x RJ45 Talkback Input/Output 1x RJ12 Remote Input/Output 2x USB-C Output
Video Standard Compliance	SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
Transport Protocols	RTMP

Display

Screen Resolution

1366 x 768

Hardware

OS Compatibility	macOS 12 or Later / Windows 10 or Later
OS Compatibility	macOS 12 to 13 or Later Windows 10 to 11
Processor	Not Specified by Manufacturer
Wi-Fi	No
Bluetooth	No
Power I/O	1x IEC C14 (100 to 240 VAC ) Input 1x XLR 4-Pin (12 VDC ) Input

General

Operating Conditions	32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions	23 x 14.8 x 6.38" / 58.4 x 37.6 x 16.21 cm
Weight	14.9 lb / 6.8 kg

Packaging Info

Package Weight	26.76 lb
Box Dimensions (LxWxH)	28.5 x 21.5 x 10"

What's in the Box:

Blackmagic Design ATEM Television Studio 4K8
Welcome Wallet with QR Code for Software Download
Limited 1-Year Manufacturer Warranty
