Blackmagic Design  |  SKU: CONVBDC/SDI/HDMI12G/P

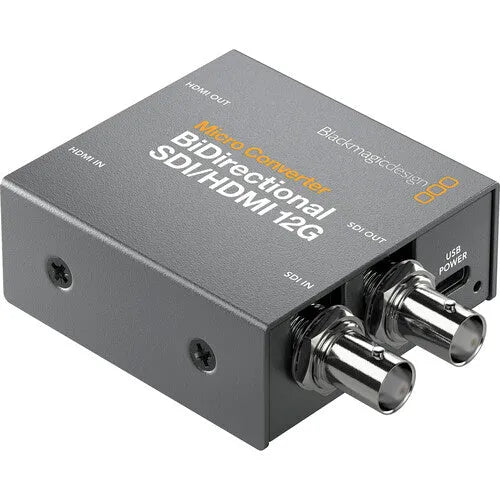

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply

Dhs. 749.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description
Key Features
  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
  • Supports up to DCI/UHD 4K60 Video
  • Blackmagic Camera Control, Tally Support
  • SDI Re-Clocking/HDMI Timecode
  • HDMI Copy Protection Support
  • Automatic Input Signal Detection
  • Embedded HDMI & SDI Input/Output
  • LED Video & Power Signal Indicators
  • A Power Supply Is Included

Overview

Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.

The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. A power supply and an international plug adapter set are included with the converter.

Key Specs

Video Inputs
1x BNC (12G-SDI) Female
1x HDMI (2.0) Female
Audio Inputs
No
Video Outputs
1x BNC (12G-SDI) Female
1x HDMI (2.0) Female
Audio Outputs
No
Other I/O
1x USB-C Firmware Input (Shared Power)
Expansion Slots
No
Format Support
Input Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF at 25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF at 25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF at 25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF at 25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 29.97 fps
576i / 625 lines at 25 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio
HDMI/SDI
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support
Yes, Version 2.2
HDR Support
Not Specified by Manufacturer
HDMI CEC
Yes
Hardware
Tally Light
Yes
Wireless
No
OS Compatibility
macOS 10.15.15 or Later
Windows 11.1 or Later
Power
Power I/O
1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption
Device: 5 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
General
Dimensions
3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight
6.13 oz / 174 g
Packaging Info
Package Weight
0.95 lb
Box Dimensions (LxWxH)
5.8 x 4.7 x 2.9"

What's in the Box:

  • Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
  • Power Adapter
  • International Plug Adapter Set
  • Limited 3-Year Manufacturer Warranty
