Blackmagic Design  |  SKU: CONVMUDCSTD/HD

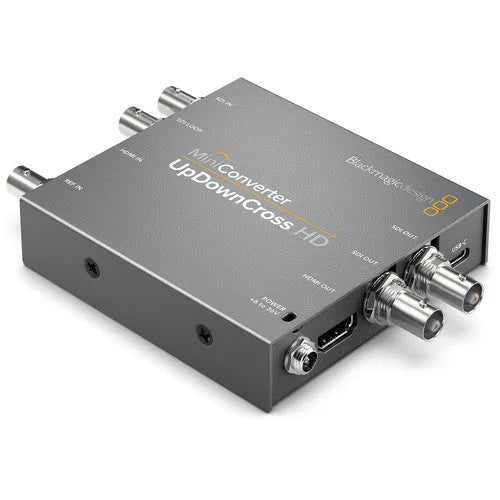

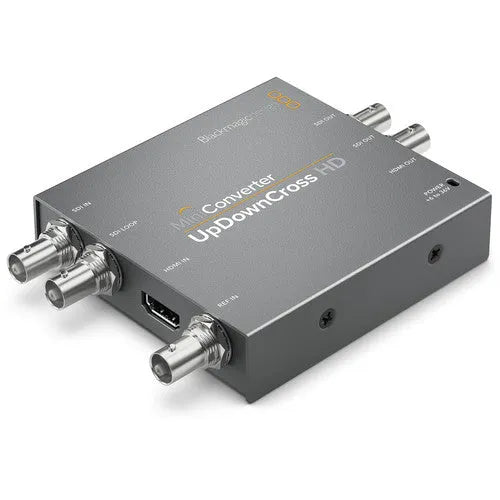

Blackmagic Design Mini Converter UpDownCross HD

Dhs. 659.00
Tax included Shipping calculated at checkout.


Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount or for smaller purchases, delivery fees will apply based on the destination.

Dubai: Delivery is within 1 business day.

Rest of UAE: Delivery typically takes up to 2-3 business days.

GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.


Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features
  • 3G/HD/SD-SDI Up/Down/Cross Conversion
  • 1 x 3G/HD/SD-SDI Input
  • 2 x 3G/HD/SD-SDI Outputs & 1 x Loopout
  • 1 x HDMI Input & 1 x HDMI Output
  • Support Signals up to 1080p60
  • Automatic Input Signal Detection
  • Automatic, Multirate Support
  • Reference Input & Reclocking
  • Control via DIP Switches or Software
  • 12V Universal Power Supply Included

Overview

Use the Mini Converter UpDownCross HD from Blackmagic Design to automatically cross-convert between any SD and HD video format, with support for signals up to 1080p60. The converter incorporates one 3G/HD/SD-SDI input, two 3G/HD/SD-SDI outputs and one loop-through output, one HDMI input, and one HDMI output. This versatile converter supports scaling for computer DVI resolutions via its HDMI input, enabling you to connect HDMI computers to SDI projectors.

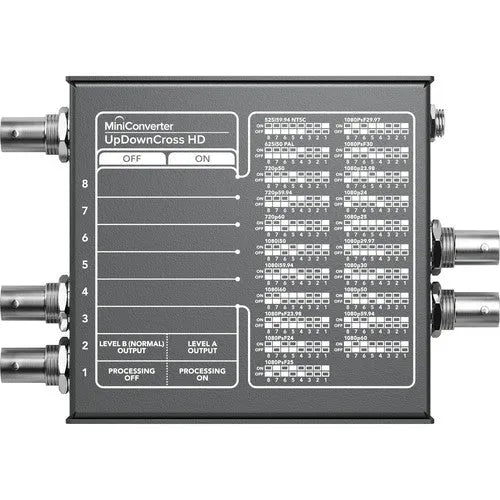

Features include automatic signal detection, reference in, reclocking, and audio delay for A/V sync. Settings can be easily changed using the diagrammed function switches, or via the OS X/Windows-compatible converter software. This compact converter features a sturdy metal housing, and includes a 12V universal power supply with a locking connection to prevent accidental disconnection.

Key Specs

Video Inputs
3G/HD/SD-SDI: 1 x BNC
HDMI: 1 x Type A
Video Output
3G/HD/SD-SDI: 2 x BNC
Loop-Through Out: 1 x BNC
HDMI: 1 x type A
Reference Input
Black Burst & Tri-Level Sync: 1 x BNC
Reclocking
Yes
SDI Compliance
SMPTE 424M-B/296M/292M/259M
ITU-R BT.656/BT.601
SDI Video Sampling
4:2:2
SDI Color Space
YUV
SDI Audio Sampling
48 kHz, 24-bit
Supported Video Standards
SDI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50

HDMI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50

NTSC SD: 525i 59.94
PAL SD: 625i 50
Computer Formats
Scaling
DVI Resolutions:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
625i 50
525i 59.94
1024 x 768
800 x 600
640 x 480
Power
Power Supply
12 VDC
Operation Voltage
6 to 36 VDC
Power Consumption
5 W
Physical & Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Relative Humidity
0 to 90%, non-condensing
Dimensions
5.32 x 3.63 x 0.9" / 13.5 x 9.2 x 2.3 cm
Weight
8.7 oz / 247 g
Packaging Info
Package Weight
1.1 lb
Box Dimensions (LxWxH)
5.8 x 5.55 x 2.6"

What's in the Box:

  • Blackmagic Design Mini Converter UpDownCross HD
  • 12 VDC Universal Power Supply with International Adapters
  • Limited 3-Year Manufacturer Warranty
