Mackie  |  SKU: CR5-X

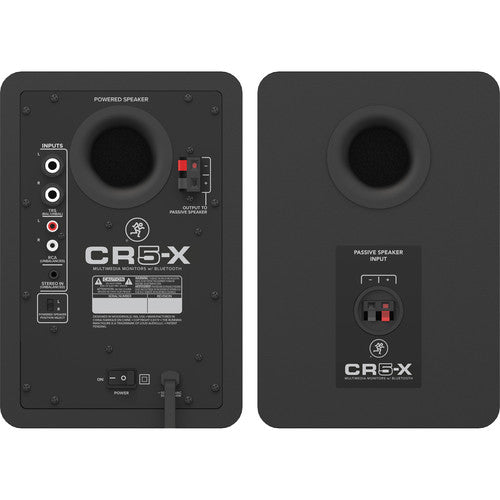

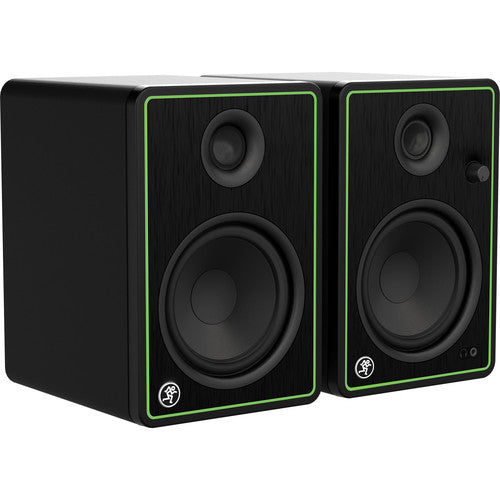

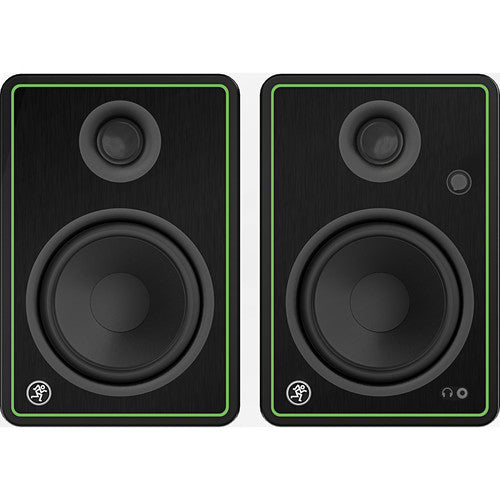

Mackie CR5-X Creative Reference Series 5" Multimedia Monitors (Pair)

Dhs. 859.00
Tax included Shipping calculated at checkout.


Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

Dubai: Delivery within 1 working day.

Rest of UAE: 1-2 working days.

GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features
  • 5" Polypropylene-Coated Woofer
  • 0.75" Silk-Dome Tweeter
  • 80W Amplifier
  • All-Wood Cabinet
  • Custom-Tuned Rear Port
  • Specially Designed Waveguide
  • 1/4" TRS, 3.5mm TRS, and RCA Inputs
  • Front-Panel Stereo Headphone Output
  • Includes Cables & Monitor Isolation Pads



Overview

The Mackie CR5-X is a pair of Creative Reference Series 5" multimedia monitors offering a compact solution for quality audio playback in home studios and gaming setups. With 80W of amplification driving 5" woofers and 0.75" tweeters, the CR5-X monitors deliver more volume and bass than the smaller CR3-X and CR4-X.

The pair consists of one passive speaker and one powered speaker that connect with an included speaker cable. Each monitor incorporates a custom-tuned rear port to smoothly extend the low end and a specially designed waveguide for clarity and proper dispersion of high frequencies.

With plenty of I/O provided, the CR5-X can accept a feed from your audio interface, computer soundcard, or mobile device while pumping out your mix to the drivers or your favorite headphones.



Key Specs

Monitor Type & Configuration
Active 2-Way
Total Power Output
40 W Peak per Monitor
Tweeter
1x 0.75" / 19.1 mm Silk Dome
Woofer
1x 5" / 12.7 cm Polypropylene Cone
Frequency Range
50 Hz to 20 kHz (-10 dB)
69 Hz to 20 kHz (-3 dB)
Audio I/O
2x 1/4" TRS Balanced/Unbalanced Line Input
1x Stereo 2RCA Unbalanced Line Input
1x 1/8" / 3.5 mm TRS Unbalanced Aux Input
2x Push Terminal Unbalanced Passive Speaker Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O
No
Network I/O
No
Wireless
No
Number of Included Monitors
Stereo Pair
Enclosure
Bass-Reflex/Ported
Total Power Output
40 W Peak per Monitor

Drivers per Monitor
Tweeter
1x 0.75" / 19.1 mm Silk Dome
Woofer
1x 5" / 12.7 cm Polypropylene Cone
Amplifiers
Full-Range: 80 W Peak Class-D

Performance
Frequency Range
50 Hz to 20 kHz (-10 dB)
69 Hz to 20 kHz (-3 dB)
Maximum Sound Pressure Level (SPL)
105 dB

Signal Processing
EQ
No
Filters
No
Parametric EQ
No
Crossover Frequency
3 kHz
Phase Adjustment
No

Connectivity
Audio I/O
2x 1/4" TRS Balanced/Unbalanced Line Input
1x Stereo 2RCA Unbalanced Line Input
1x 1/8" / 3.5 mm TRS Unbalanced Aux Input
2x Push Terminal Unbalanced Passive Speaker Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O
No
Network I/O
No
USB
No
Wireless
No

Power
AC Input Power
100 to 240 VAC, 50/60 Hz
Power Consumption
80 W

Physical
Color
Black
Monitor Orientation
Vertical
Enclosure Material
MDF
Mounting Points
No
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions (W x H x D)
6.9 x 10.2 x 9.3" / 17.5 x 25.9 x 23.6 cm (Each)
Weight
14.9 lb / 6.8 kg (Pair)

Packaging Info
Package Weight
17.29 lb
Box Dimensions (LxWxH)
18.6 x 13 x 11.2"



What's in the Box:

  • Mackie CR5-X Creative Reference Series 5" Multimedia Monitors (Pair)
  • 2 x Monitor Isolation Pads
  • 3.5mm to Stereo RCA Cable
  • 3.5mm to 3.5mm Cable for Connecting Smartphone to Monitor
  • Speaker to Speaker Cable
  • Limited 1-Year Manufacturer Warranty
