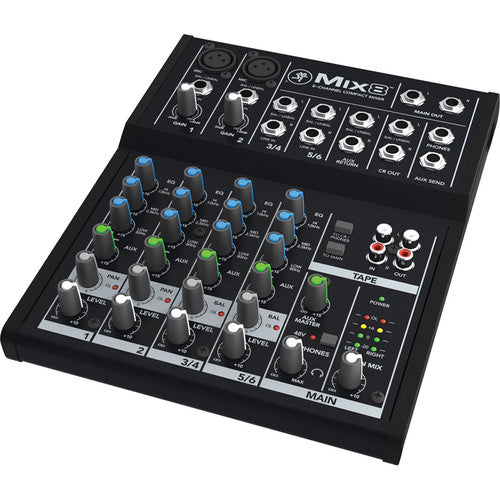

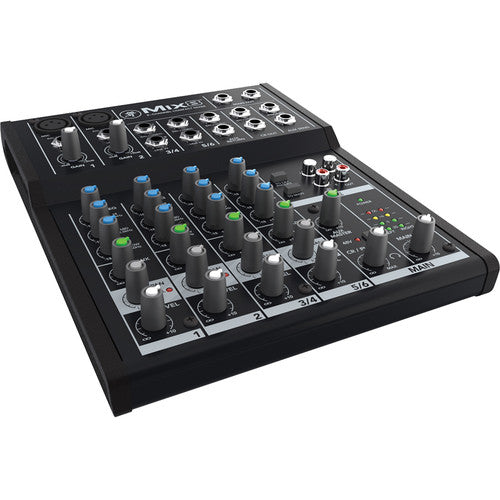

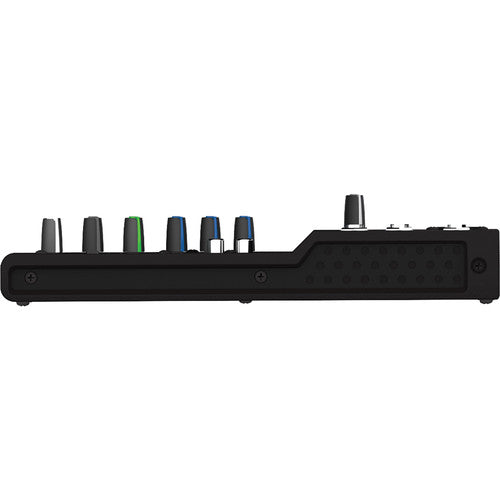

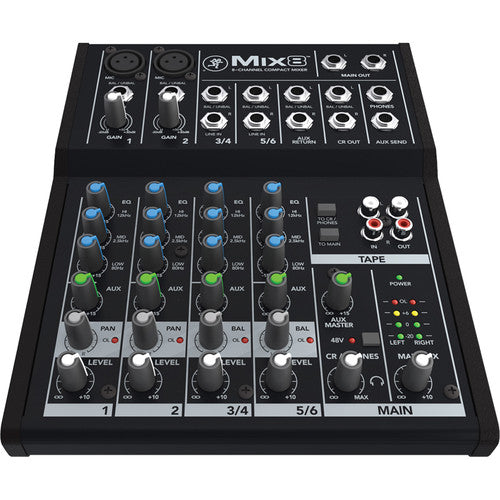

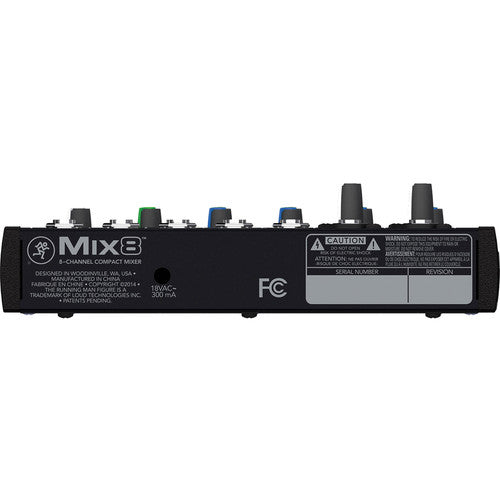

Mackie Mix8 - 8-Channel Compact Mixer

Name: Mackie Mix8 - 8-Channel Compact Mixer
Brand: Mackie
SKU: MIX8
Price: 479.00 AED
Availability: InStock

Dhs. 479.00

Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount or for smaller purchases, delivery fees will apply based on the destination.

• Dubai: Delivery is within 1 business day.

• Rest of UAE: Delivery typically takes up to 1-2 business days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

Credit card & Tabby
Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features

2 Mic/Line Inputs with 3-Band EQ
2 Stereo 1/4" Line Inputs with 3-Band EQ
1 Aux Send with Stereo 1/4'' Returns
Stereo RCA Tape Inputs & Outputs
Pan, Level & Overload Indication
48V for Condenser Mics
Dedicated Stereo RCA Inputs
Headphone & Stereo Control Room Outs
Compact & Portable

Overview

The Mackie Mix8 is an 8-channel compact mixer that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features two mic/line inputs with 48V phantom power, two stereo 1/4" line inputs, and stereo 1/4" aux send and return. It is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

Each of the two mic/line inputs is equipped with XLR and 1/4" connectors, a dedicated 3-band EQ, aux send, pan, level control and an LED overload indicator. The two stereo 1/4" line inputs each feature an aux send, 3-band EQ, level control, balance control and also have an LED overload indicator.

Key Specs

Number of Analog Input Channels	8 (2 Mono / 2 Stereo)
Number of Mic Preamps	2
Analog Output Channels	1x Stereo Master Output 1x Stereo Control Room/Monitor Output 1x Mono Aux Send Output 1x Stereo Tape/Record Output 1x Stereo Headphone Output
Mix Routing	Main Mix per Mono Input Channel, Stereo Input Channel Stereo Aux Bus/Subgroup per Stereo Input Channel
EQ	3-Band EQ
Built-In Effects	No
Wireless	No
Rack Mountable	No

Mixer

Number of Analog Input Channels	8 (2 Mono / 2 Stereo)
Number of Mic Preamps	2
Analog Output Channels	1x Stereo Master Output 1x Stereo Control Room/Monitor Output 1x Mono Aux Send Output 1x Stereo Tape/Record Output 1x Stereo Headphone Output
Mix Routing	Main Mix per Mono Input Channel, Stereo Input Channel Stereo Aux Bus/Subgroup per Stereo Input Channel
Faders & Level Adjustment	4x Channel Knob 1x Bus/Subgroup Knob 1x Master Knob
Meters	1x 4-Segment LED

Signal Processing

Gain/Trim Range	Up to +10 dB
Sidechain Filters	No
EQ	3-Band EQ
EQ Parameters	High: ±15 dB at 12 kHz (Shelving) Mid: ±15 dB at 2.5 kHz (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ	No
Filters	Low-Pass: 75 Hz, 18 dB/Octave
Solo/Mute	No
Built-In Effects	No

Performance

Frequency Response	Mic Input to Output: 20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level	XLR Mic Input: +19 dBu Aux Return: +16 dBu Line Input: +21 dBu
I/O Impedance	Mic Input: 3.8 Kilohms Line Input: ≥ 10 Kilohms Tape Output: 1 Kilohms Headphone Output: 22 Ohms Main Output: 120 Ohms (Unbalanced) 240 Ohms (Balanced)
Crosstalk	Input to Output: -85 dB at 1 kHz (20 Hz to 20 kHz) Master Fader Off: -75 dB at 1 kHz
CMRR	> -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)
EIN	-125 dBu at Max Gain
Noise Floor	All Outputs: -100 dBu (Master Level at -∞, Channel Levels at -∞) -90 dBu (Master Level at Unity, Channel Levels at -∞) -85 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N	Mic Input to Main Output: < 0.25% (+4 dBu)

Connectivity

Analog Inputs	2x XLR 3-Pin Balanced/Unbalanced Mic Input 2x 1/4" TRS Balanced/Unbalanced Line Input 4x 1/4" TRS Balanced/Unbalanced Stereo Line Input (2 Stereo Pair) 2x 1/4" TRS Balanced/Unbalanced Aux Return 1x Stereo RCA Coaxial Unbalanced Tape Input (1 Stereo Pair)
Analog Outputs	2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 1x 1/4" TRS Mono Aux Send 1x 1/4" TRS Stereo Headphone Output 1x Stereo RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair) 1x Stereo RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair)
Phantom Power	No
Digital I/O	No
Wireless	No

Power

AC Input Power	120 VAC, 60 Hz 230 VAC, 50 / 60 Hz
Power Supply Output	18 VAC at 1000 mA

Physical

Rack Mountable	No
Dimensions	2.1 x 7.8 x 9.6" / 53 x 198 x 244 mm
Weight	2.5 lb / 1.1 kg

Packaging Info

Package Weight	3.285 lb
Box Dimensions (LxWxH)	13.4 x 9.3 x 3.4"

What's in the Box:

Mackie Mix8 - 8-Channel Compact Mixer
Power Cord
Limited 1-Year Manufacturer Warranty
