Motu  |  SKU: 3140

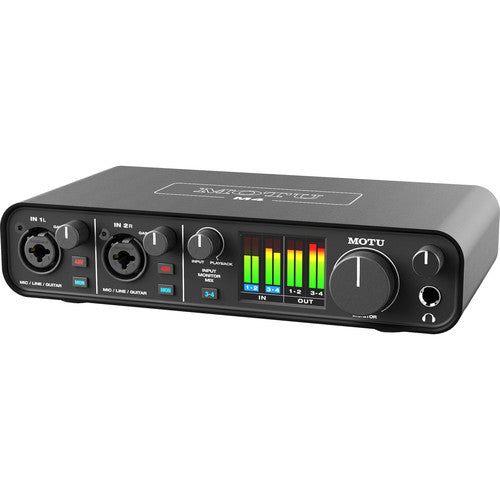

MOTU M4 USB-C Audio-MIDI Interface

Dhs. 1,079.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description
Key Features
  • Musicians, Podcasters & Producers
  • Bus Powered / Mac, Windows, iOS
  • 2 Mic/Line/Instrument Preamp, 2 Line In
  • 1 Headphone Out, 4 RCA & 1/4" Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Low-Latency Monitoring
  • Full-Color LCD with I/O Metering
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, VIs, Loops & Samples

Overview

Pristine, versatile, and portable, the MOTU M4 desktop 4x4 USB-C audio-MIDI interface combines high-class audio performance, a robust bundle of DAWs, virtual instruments, loops, and samples, and a feature set that makes it equally powerful and user-friendly for musicians, podcasters, and producers, all at a highly affordable price point.

With its two front-panel mic/line/instrument preamps and two rear-panel line inputs, the M4 can record anything from dynamic and condenser microphones to electric guitars and drum machines in distortion-free, sparkling clarity. Equipped with top-notch ESS digital-to-analog converters that drive the main outs and the headphone jack, the M4 lets you monitor through your speakers and headphones with the dynamic range normally found only on much more expensive interfaces.

Use the M4's digital loopback channels to easily route audio from your computer directly into your host software—record remote podcast guests from Skype or any other VoIP software without incurring horrible feedback, or livestream a mix of live inputs and the computer's output.

The M4 is equally suitable for producers, thanks to its MIDI 5-pin I/O. Plug in a MIDI keyboard to control virtual instruments such as the selection of over 100 VIs included with the M4. Or, run MIDI from the M4 to your favorite hardware synth to capture its glorious tones through the M4's pristine analog preamps.

No matter what you do, the M4's specially engineered drivers ensure ultralow-latency monitoring so you can rehearse and record in real time without hearing any distracting echo, and the full-color LCD screen shows you high-resolution metering for all inputs and outputs at all times. Take the M4 anywhere you need to work; it is bus-powered and compatible with Mac/Windows computers and iOS mobile devices.

Key Specs

Channels of I/O
Analog:
4 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2

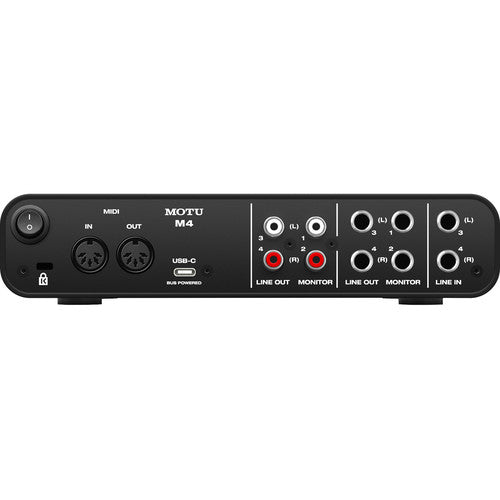

Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4" TRS Balanced Line Input
1x 1/4" TRS Unbalanced Headphone Output
4x 1/4" TRS Balanced Line Output (DC-Coupled)
4x RCA TS Unbalanced Line Output
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.11 or Later
Windows 7 or Later
9 or Later
Power Requirements
USB Bus Power
Channels of I/O
Analog:
4 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Input Level Adjustment
2x Knob
Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs:
0 dB to +60 dB
Line/Hi-Z Inputs:
0 dB to +57 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4" TRS Balanced Line Input
1x 1/4" TRS Unbalanced Headphone Output
4x 1/4" TRS Balanced Line Output (DC-Coupled)
4x RCA TS Unbalanced Line Output
Phantom Power
48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No
Performance
Frequency Response
Mic Inputs:
20 Hz to 20 kHz +0/-0.1 dB
Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.15 dB
Line Inputs:
20 Hz to 20 kHz ±0.07 dB
Line Outputs:
20 Hz to 20 kHz +0/-0.1 dB
Maximum Input Level
Mic Inputs:
+10 dBu (Min Gain)
Line/Hi-Z Inputs:
+16 dBu (Min Gain)
Line Inputs:
+18 dBu (Min Gain)
Maximum Output Level
Line Outputs:
+16 dBu (Balanced)
Line Outputs:
+9.5 dBu (Unbalanced)
Headphone Outputs:
+12.5 dBu
Impedance
Mic Inputs:
2.65 Kilohms
Line Inputs:
2 Megohms
Line Outputs:
100 Ohms
Hi-Z Inputs:
1 Megohm
Dynamic Range
Mic Inputs:
115 dBA
Line/Hi-Z Inputs:
114 dBA
Line Inputs:
115 dBA
Line/Monitor Outputs:
120 dBA
RCA Outputs:
119 dBA
Headphone Outputs:
115 dBA
THD+N
Mic Inputs:
< -97 dB / < 0.0014%
Line/Hi-Z Inputs:
< -100 dB / < 0.001%
Line Inputs:
< -106 dB / < 0.0005%
Line/Monitor Outputs:
< -110 dB / < 0.00032%
RCA Outputs:
< -105 dB / < 0.00056%
Headphone Outputs:
< -110 dB / < 0.0003%
EIN
Mic Inputs:
-129 dB A-Weighted (150-Ohm Source, Max Gain)
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
Zero-Latency Direct Monitoring2.5 ms at 96 kHz (Dependent on Buffer Size, Input to Output)
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
macOS 10.11 or Later / Windows 7 or Later / 9 or Later
OS Compatibility
macOS 10.11 or Later
Windows 7 or Later
9 or Later
Processor Requirement
Mac:
1 GHz Intel
PC:
1 GHz Intel Pentium
RAM Requirements
2 GB, 4 GB Recommended
Required Hardware
Available USB 2.0 Port
USB Cable (Included)
Power
Power Requirements
USB Bus Power
Physical
Dimensions
8.25 x 4.25 x 1.75" / 20.96 x 10.79 x 4.45 cm (Chassis Only)
Weight
1.6 lb / 0.7 kg
Packaging Info
Package Weight
2.15 lb
Box Dimensions (LxWxH)
10.6 x 7.3 x 2.8"


What's in the Box:

  • MOTU M4 USB-C Audio-MIDI Interface
  • USB-C to USB-A Cable
  • Limited 2-Year Manufacturer Warranty
