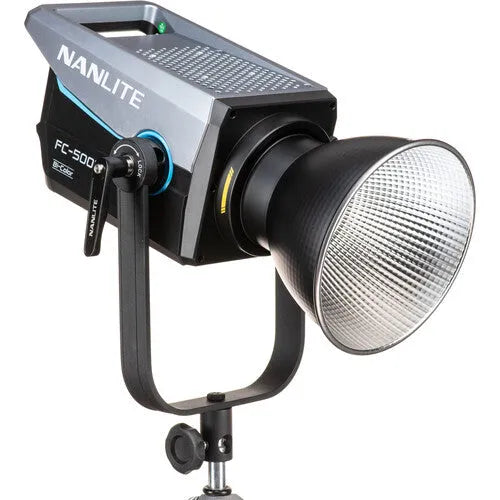

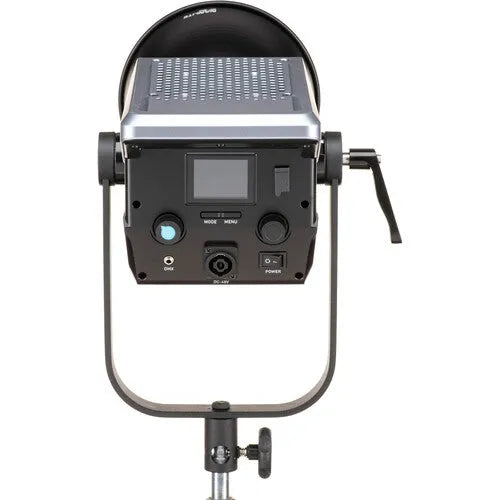

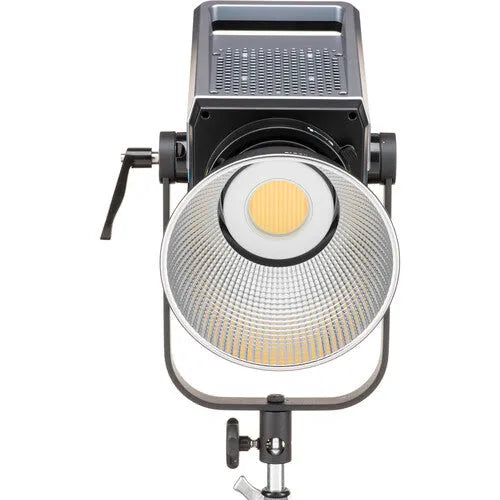

Nanlite FC500B Bi-Color LED Spotlight

Key Features

For Film, Broadcast & Video Production

Output: 65,640 Lux at 3.3' w/ Reflector

2700-6500K CCT

AC Power

Overview

Designed to give you full flexibility of a bi-color output, the FC500B Bi-Color LED Spotlight from Nanlite is a compact, stylish AC-powered fixture suitable to light up most scenarios with a Kelvin range of 2700 to 6500K. With an innovative wing-shaped top housing, the FC500B stands out from other Nanlite fixtures. Delivering impressive brightness, it ensures faithful color reproduction with a CRI of 96 and a TLCI of 98 and provides advanced features with intuitive onboard and remote control. This highly versatile light comes with Bluetooth and 2.4 GHz for wireless connection, DMX/RDM capability, and smart fan modes for complete control over sound. The FC500B's light head is conveniently separated from the included power supply, so each can be as lightweight as possible. A reflector and a robust carry case are also supplied for extended output and portability.

Key Specs

Item Type	1x LED Monolight
Included Storage Case	Yes
Photometrics	2700K: 1516 fc / 16,320 Lux at 3.3' / 1 m* 4575 fc / 49,250 Lux at 3.3' / 1 m (with Reflector) 3200K: 1640 fc / 17,660 Lux at 3.3' / 1 m  5065 fc / 54,530 Lux at 3.3' / 1 m (with Reflector) 5600K: 1961 fc / 21,110 Lux at 3.3' / 1 m  6097 fc / 65,640 Lux at 3.3' / 1 m (with Reflector) 6500K: 1846 fc / 19,880 Lux at 3.3' / 1 m  5923 fc / 63,760 Lux at 3.3' / 1 m (with Reflector) *Standardized Measurement Supplied by the Manufacturer
Color Temperature	2700 to 6500K
Color Modes	Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 98
Dimming	• 0 to 100%
Front Accessory Mount	Bowens S
Wireless Remote Control Type	Bluetooth Radio/RF
Power Source	AC Power (Cable Built-In)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	520 W
Fixture Mounting	1x 5/8" Receiver (Via Yoke Mount)
