PreSonus  |  SKU: REVELATOR IO24

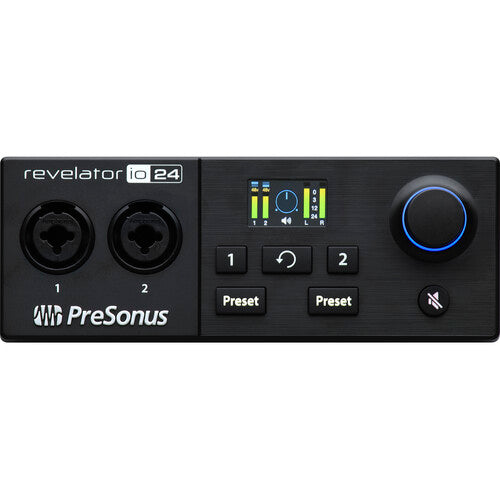

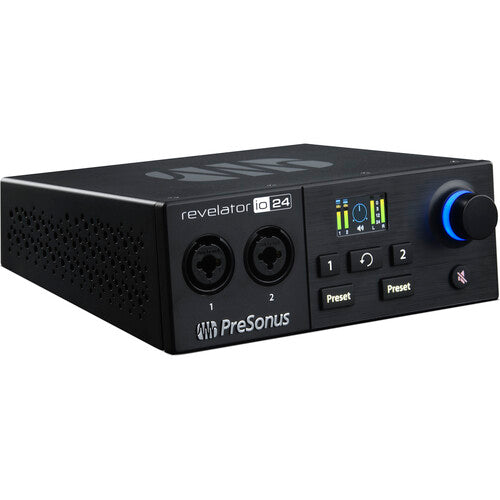

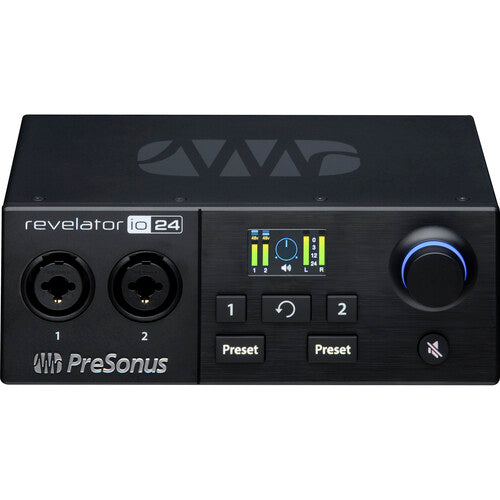

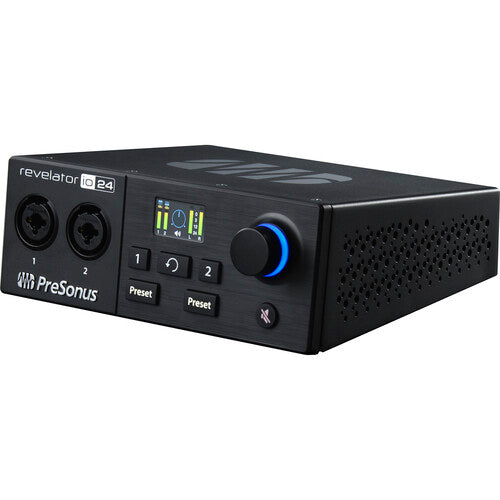

PreSonus Revelator io24 Desktop 2x4 USB Type-C Audio/MIDI Interface

Dhs. 689.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features

  • Podcasters, Streamers, and Musicians
  • USB Type-C Connectivity
  • 2 XMAX-L Mic/Line/Instrument Preamps
  • 1 Headphone Output, 2 Monitor Outs
  • 24-Bit / 96 kHz AD/DA
  • Bus Powered / Mac, Windows
  • Phantom Power, Direct Monitor, MIDI I/O
  • Onboard DSP with Versatile Presets
  • 2 Dedicated Loopback Channels
  • DAWs, VIs, Plug-Ins, Loops, and Samples

Overview

Loaded with onboard DSP, loopback channels, and complete configuration for streaming at the click of a button, the PreSonus Revelator io24 desktop 2x4 USB Type-C audio/MIDI interface blends studio-quality sonic performance and refreshing ease of use, so podcasters, live streamers, content creators, and musicians can get great sounds in a hurry. Plus, it comes with a powerful software package that includes two DAWs, a slew of virtual instruments, plug-in effects, loops, samples, and much more.

On the hardware side, the two XMAX-L preamps and 24-bit / 96 kHz converters deliver clarity and natural tonality for mics, instruments, or line-level sources. Whether you use the factory presets or create your own, the built-in Fat Channel processing offers pro-level impact without ever taxing your computer. Use the two loopback channels and integrated mixer to pipe in backing tracks or a call-in guest, and feed independent mixes to the main and headphone outputs. There's even a 5-pin MIDI I/O to allow simple hookup of a MIDI controller, synthesizer, or groovebox, making the Revelator io24 advantageous for beatmakers, keyboardists, and electronic music producers as well.

Key Specs

Channels of I/O
Analog:
2 Inputs / 4 Outputs
Maximum Sampling Rate
96 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/4" TRS Unbalanced Headphone Output
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.13 or Later (64-Bit Only)
Windows 10 (64-Bit Only)
9.0.3 or Later
Power Requirements
USB Bus Power
Channels of I/O
Analog:
2 Inputs / 4 Outputs
Maximum Sampling Rate
96 kHz / 24-Bit
Number of Microphone Inputs
2
Input Level Adjustment
1x Knob
Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs:
60 dB
Hi-Z Inputs:
50 dB
High-Pass Filter
80 Hz
Solo/Mute
Mute per Master
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/4" TRS Unbalanced Headphone Output
Phantom Power
48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No

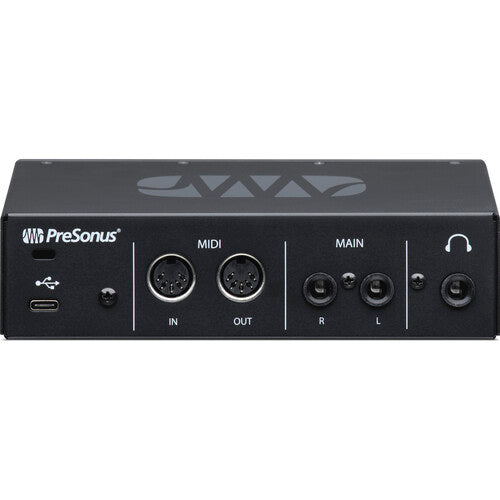

MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No
Performance
Frequency Response
Mic, Hi-Z Inputs:
20 Hz to 20 kHz +0.1/-0.3 dB (Unity Gain)
Monitor Outputs:
20 Hz to 20 kHz +0.1/-0.3 dB (Unity Gain)
Headphone Outputs:
20 Hz to 20 kHz +0.1/-0.5 dB
Maximum Input Level
Mic/Hi-Z Inputs:
+10 dBu (Min Gain)
Maximum Output Level
Monitor Outputs:
+10 dBu (Balanced, 1 kHz)
Headphone Output Power
40 mW per Channel into 56 Ohms (Max)
Impedance
Mic Inputs:
1.4 Kilohms (Balanced)
Hi-Z Inputs:
1 Megohm
Headphone Outputs:
32 to 300 Ohms
Dynamic Range
AD/DA Converters:
105 dB
THD+N
Mic Inputs:
0.009% (1 kHz, Min Gain, at -1 dBFS)
Monitor Outputs:
0.003% (1 kHz, Unity Gain, at -1 dBFS)
Headphone Outputs:
0.01% (1 kHz, at 0 dBFS)
EIN
Mic Inputs:
-126 dBu A-Weighted (150-Ohm Source, Max Gain)
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
Zero-Latency Direct Monitoring
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Computer: macOS 10.13 or Later / Windows 10 or Later
Mobile: Android/iPadOS
OS Compatibility
macOS 10.13 or Later (64-Bit Only)
Windows 10 (64-Bit Only)
9.0.3 or Later
Processor Requirement
Mac:
Intel Core i3 or Better
PC:
Intel Core i3 or Better
AMD A10 or Better
RAM Requirements
4 GB, 8 GB Recommended
Storage Requirements
30 GB
Mobile Device Compatibility
iPad Pro (with USB-C)
iPad Air (with USB-C)
iPad Mini with Retina (with USB-C)
iPad 4th Gen. (with USB-C)
Android Smartphone (with USB-C)
Android Tablet (with USB-C)
Required Hardware
Available USB 2.0 Port or USB-C Port
USB Cable (Included)
Power
Power Requirements
USB Bus Power
Physical
Dimensions
6.25 x 6.25 x 2.5" / 15.88 x 15.88 x 6.3 cm
Weight
2.0 lb / 0.9 kg
Packaging Info
Package Weight
2.41 lb
Box Dimensions (LxWxH)
8.5 x 8.4 x 5.2"


What's in the Box:

  • PreSonus Revelator io24 Desktop 2x4 USB Type-C Audio/MIDI Interface
  • USB Type-C to USB Type-A Cable
  • Limited 1-Year Manufacturer Warranty
