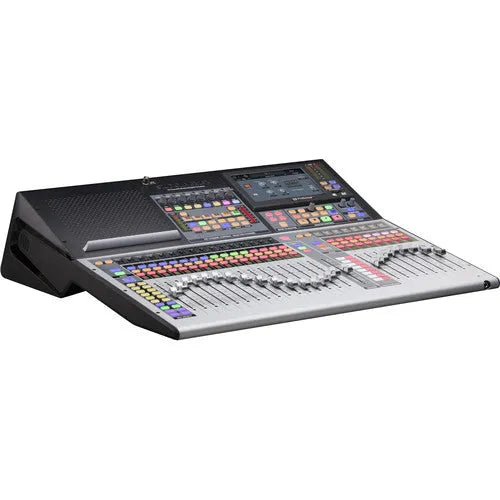

PreSonus StudioLive 32SX Series III S 32-Channel Compact Digital Mixer/Recorder/Interface

Key Features

Metro: Live Remote Mixing over Internet

25 Touch-Sensitive Motorized Faders

32 XMAX Preamps: 16 Mic and 16 Mic/Line

16 Analog FlexMix Outs: 12 XLR and 4 TRS

Overview

Designed for live sound reinforcement, live recording, and studio recording applications, the PreSonus StudioLive 32SX is a Series III S 32-channel digital console, recorder, and audio interface in a low-profile, space-saving frame. The mixer features an integrated hardware and software system with a full-color touchscreen, 25 touch-sensitive, motorized faders and 32 recallable XMAX preamps. The powerful dual-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus a four-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound check, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.

Key Specs

Number of Analog Input Channels	32
Number of Mic Preamps	32
Faders & Level Adjustment	25 Fader
Analog Inputs	1x XLR Talkback Input 16x XLR 3-Pin Mic Input 16x Combo XLR-1/4" TRS Mic/Line Input 4x 1/4" TRS Aux Return (2 Stereo Pairs) 1x Stereo RCA Tape Input (1 Stereo Pair)
Analog Outputs	1x Stereo RCA Tape Output (1 Stereo Pair) 12x XLR 3-Pin Subgroup/Aux/Matrix Output 4x 1/4" TRS Subgroup/Aux/Matrix Output 2x XLR 3-Pin Main Output 1x XLR 3-Pin Mono-Summed Output 2x 1/4" TRS Monitor Output 1x 1/4" TRS Headphone Output 4x 1/4" TRS Subgroup Output
Digital I/O	1x RJ45 (Control, 1 Gb/s) 1x RJ45 AVB (I/O) 1x XLR AES3 Output
USB I/O	1x USB-B 2.0()
Wireless	Bluetooth 4.1
Rack Mountable	No
