Roland | SKU: V-1HD STR

Roland V-1HD Portable 4 x HDMI Video Switcher & UVC-01 USB Capture Device Kit

Name: Roland V-1HD Portable 4 x HDMI Video Switcher & UVC-01 USB Capture Device Kit
Brand: Roland
SKU: V-1HD STR
Price: 2899.00 AED
Availability: InStock

Dhs. 2,899.00

Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• Saudi Arabia: 3-5 working days via DHL/ Aramex. The customer is responsible for all import customs and duty charges at the time of delivery (Approx. 50-200 SAR).

• Rest of GCC: 3-5 working days via DHL/ Aramex. The customer is responsible for all import customs and duty charges at the time of delivery.

Description

Key Features

4 x HDMI Inputs with Frame Buffers
Hardware or PC Control
Run HDMI Signal to Streaming Platforms
Up to 1080p60 Uncompressed Input/Output
Manual T-Bar
12-Channel Digital Audio Mixer
Program Output and Multiview Preview
Picture-in-Picture, Green Screen Keying
Advanced Video Effects

Overview

The V-1HD Portable 4 x HDMI Video Switcher & UVC-01 USB Capture Device Kit from Roland enables live switching between four HDMI sources and sending the resulting output via HDMI or converting it through the USB video capture device for importing into a computer for recording or live streaming. The kit, which includes Roland's V-1HD switcher and the UVC-01 USB Video Capture Device, facilitates uncompressed 1080p60 live streaming by turning the combined output of the switcher into a signal that the computer will detect as it would with an HD webcam, thus providing a smooth and reliable live streaming solution.

Key Specs

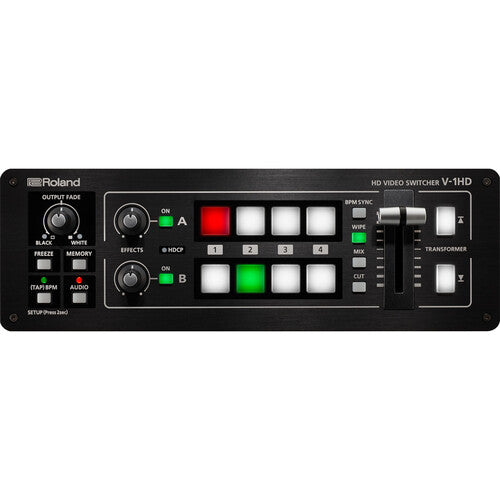

Roland V-1HD Portable 4 x HDMI Input Switcher

Video Processing	4:2:2 (YPbPr), 8-bit

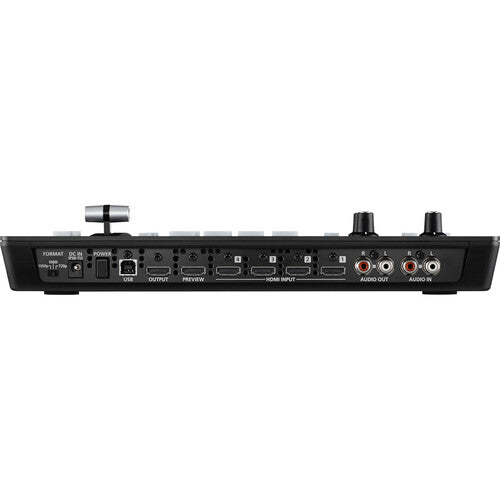

Input / Output	Input 4 x HDMI type A 1 x L/R pair RCA (audio) 1 x 3.5 mm stereo mini jack, mic (plug-in power supported) Output 2 x HDMI (preview, program output) 1 x L/R RCA (audio) 1 x 3.5 mm stereo mini jack
Video Format	Input 1080p: 50/59.94 1080i: 50/59.94 720p: 50/59.94 Output 1080p: 50/59.94 1080i: 50/59.94 720p: 50/59.94
Audio Processing	48 kHz 24-bit Max Audio Delay: 500 ms (each channel)
Input Level	Audio: -10 dBu (maximum: +8 dBu) MIC: -41 to -31 dBu (maximum: -1 dBu)
Input Impedance	Audio: 15 kOhms MIC: 10 kOhms
Output Level	Audio: -10 dBu (maximum: +8 dBu) Headphones: 72 mW + 72 mW (32 Ohms)
Output Impedance	Audio: 1 kOhms Headphones: 10 Ohms
Interface - Connectors	1 x MIDI input 1 x MIDI output/through 1 x USB B (remote control from PC)
Power	Current Draw: 1.5 A Power Consumption: 18 W
Dimensions	12.3 x 4.0 x 2.3" / 31.3 x 10.2 x 5.9 cm
Weight	2.6 lb / 1.2 kg

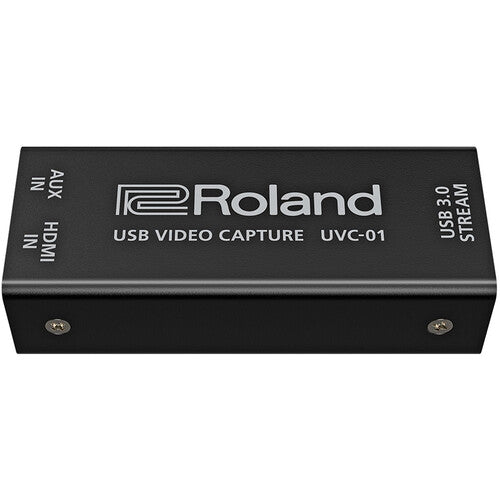

Roland UVC-01 USB Video Capture

Inputs/Outputs

System Connection	USB-B 3.0 / 3.1/3.2 Gen 1
Video Inputs	1x HDMI
Audio Inputs	1x 1/8" / 3.5 mm TRS Stereo Analog

Format Support

Input Video Format	HDMI 1080p at 50/59.94/60 fps 1080i 50/59.94 fps 720p 50/59.94/60 fps UXGA (1600 x 1200) 60 fps SXGA+ (1400 x 1050) 60 fps FWXGA (1366 x 768) 60 fps SXVGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 60 fps VGA (640 x 480) 60 fps 576p 50 fps 576i / 625 lines 50 fps 480p 59.94 fps 480i / 525 lines 59.94 fps
Input Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz LPCM (Linear Pulse-Code Modulation): 44.1 kHz
Output Video Format	USB-B 1080p at 60 fps WUXGA (1920 x 1200) 60 fps 720p 60 fps HD+ (1600 x 900) WUXGA+ (1680 x 1050) UXGA (1600 x 1200) WXGA+ (1440 x 900) FWXGA (1366 x 768) 1360 x 768 WXGA (1280 x 800) SXGA (1280 x 1024) XGA+ (1152 x 864) XGA (1024 x 768) 1024 x 576 960 x 540 856 x 480 SVGA (800 x 600) 576i / 625 lines 720 x 576 720 x 480 VGA (640 x 480) 640 x 360 QVGA (320 x 240)
Output Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Embedded Audio	HDMI

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

General

Dimensions	3.5 x 1.5 x 0.9" / 90 x 37 x 23 mm
Weight	3.4 oz / 96 g

What's in the Box:

Roland V-1HD Portable 4 x HDMI Input Switcher
AC Adapter/Power Cord
Cord Hook
Roland UVC-01 USB Video Capture
USB 3.0 Type-B to Type-A Cable
Limited 1-Year Manufacturer Warranty
