Roland | SKU: V-80HD

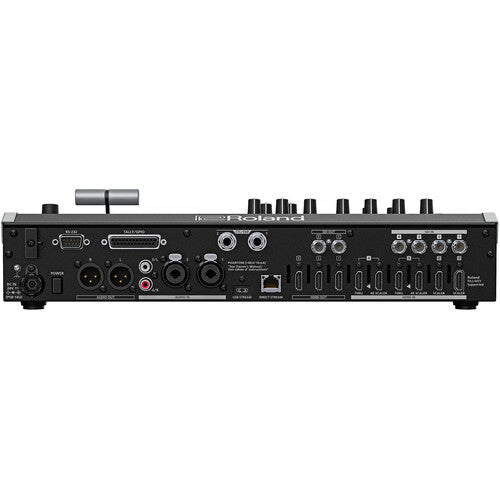

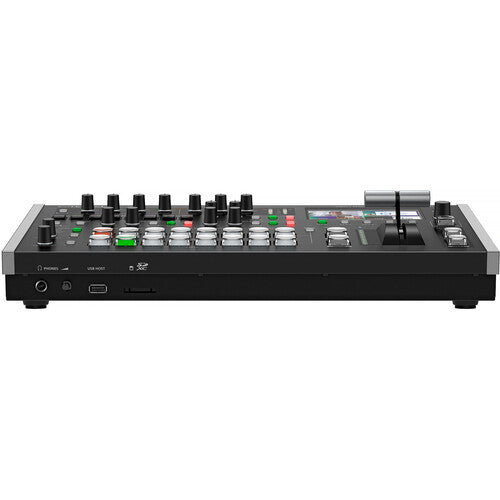

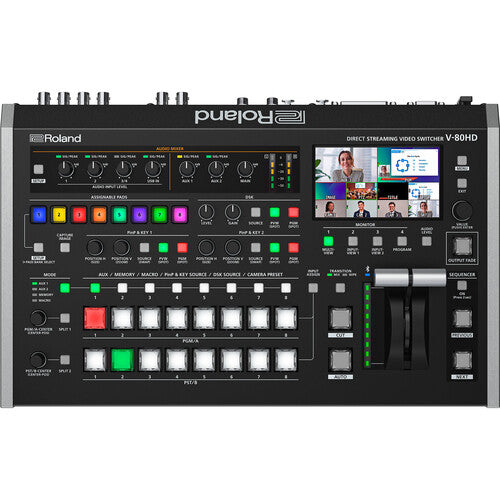

Roland V-80HD Direct Streaming Video Switcher

Name: Roland V-80HD Direct Streaming Video Switcher
Brand: Roland
SKU: V-80HD
Price: 15299.00 AED
Availability: InStock

Dhs. 15,299.00

Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• Saudi Arabia: 3-5 working days via DHL/ Aramex. The customer is responsible for all import customs and duty charges at the time of delivery (Approx. 50-200 SAR).

• Rest of GCC: 3-5 working days via DHL/ Aramex. The customer is responsible for all import customs and duty charges at the time of delivery.

Description

Key Features

4 x HDMI and 4 x SDI Inputs
Two UHD 4K HDMI Inputs with Downscalers
Supports up to 1080p60 Video
3 x HDMI and 2 x SDI Outputs
USB and Direct Streaming
28-Channel Digital Audio Mixer
LED Color Buttons, T-Bar, LCD Screen
RJ45 LAN, Bluetooth 5.0 Connectivity
SD Card Slot, Integrated PTZ Control
Tally/GPI/RS-232 Interface

Overview

The Roland V-80HD Direct Streaming Video Switcher offers a flexible I/O interface with multi-channel audio mixing and effects for professional video production applications such as livestreaming, studio productions, and in-person events. Four HDMI inputs—two equipped with downscalers, which take UHD 4K signals and turn them into HD video—and four SDI inputs with frame rate converters connect to various video sources. These sources are then output to three HDMI and two SDI output ports, sent out via Direct Stream connection over LAN, or via USB stream with the USB-C port. Onboard LED color buttons, a T-bar, and an LCD screen make switching between sources intuitive and easy.

Key Specs

Processing

Switching Type	Pushbutton, Software, T-Bar
Color Processing	8-Bit 4:2:2
Audio Processing	48 kHz / 16-Bit

Input

Video Inputs	4x HDMI 4x BNC
Input Video Format	HDMI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/60 fps 1080i at 50/59.94 fps WUXGA (1920 x 1200) at 60 fps UXGA (1600 x 1200) at 60 fps SXGA+ (1400 x 1050) at 60 fps FWXGA (1366 x 768) at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps VGA (640 x 480) at 60 fps 720p at 50/59.94 fps 576i / 625 lines at 50 fps 576p at 50 fps 480i / 525 lines at 59.94 fps 480p at 59.94 fps SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94 fps
Audio Inputs	2x Combo XLR-1/4" TRS Female 1x 2RCA Female
Input Audio Format	Analog
Embedded Audio Input	HDMI SDI

Output

Video Outputs	3x HDMI 2x BNC
Output Video Format	HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Outputs	2x XLR 3-Pin 1x 1/4" TRS Stereo
Output Audio Format	Analog
Embedded Audio Output	HDMI SDI USB-C

Connectivity

Other I/O	1x USB-C 1x USB-A 2x 1/4" TRS Control 1x DB-25 GPI, Tally 1x DE-9/DB-9 RS-232 1x RJ45 LAN
Video Standard Compliance	SMPTE 292M/425M-A/425M-B
HDCP Support	Yes
HDR Support	Yes

Display

Display Size	4.3"
Screen Resolution	480 x 272

Hardware

OS Compatibility	Computer: macOS / Windows Mobile: iOS Only
Wireless	Bluetooth 5.0

Power

Power I/O	1x Barrel Input
Power Consumption	Power Supply: 24 VAC at 2.1 A Device: 51 W

General

Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	15.6 x 10 x 4.1" / 396 x 254 x 103 mm
Weight	7.7 lb / 3.5 kg

What's in the Box:

Roland V-80HD Direct Streaming Video Switcher
AC Power Adapter
Power Cord
Limited 1-Year Manufacturer Warranty
