TASCAM  |  SKU: SS-CDR250N

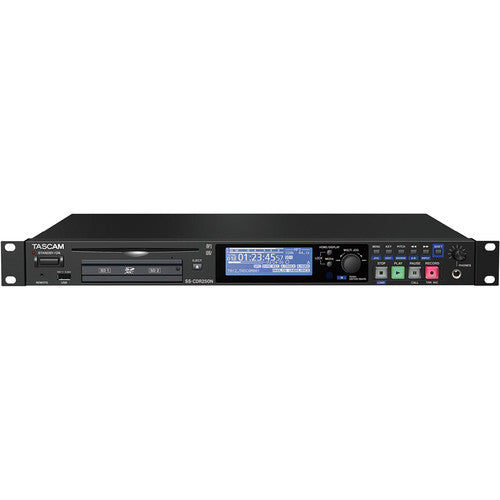

TASCAM SS-CDR250N Two-Channel Networking CD and Media Recorder

Dhs. 3,999.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby (choose credit card option)
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features

  • XLR and RCA Input and Output Jacks
  • AES/EBU and S/PDIF Digital I/O
  • RS-232C Serial & 25-Pin Control Ports
  • Records to SD Card or USB Media
  • Graphic LCD Displays Time, Level & Menu
  • Compact, Rack-Mountable 1RU Format
  • Supports SDXC Media Cards up to 128 GB
  • Compressor and Limiter on Input
  • Dual-Format Recording as WAV and MP3



Overview

The TASCAM SS-CDR250N Two-Channel Networking CD and Media Recorder is a solid-state recorder that features networking and can accept an optional IF-DA2 Dante card for integrating into any commercial environment. It can be used in broadcast and contractor installation markets, and records in WAV, MP3, SD/SDHC/SDXC, USB memory, and CD application formats.

Built with parallel and RS-232C serial control, along with up to 20 tracks of flash start, the media recorder provides balanced and unbalanced I/O, and coaxial digital I/O. These unique features make the SS-CDR250N Two-Channel Networking CD and Media Recorder an ideal one rack-space media solution.



Key Specs

General
Form Factor
Rackmount
Number of Tracks
2
Maximum Simultaneous Tracks
2x Recording
Maximum Sampling Rate
44.1 kHz / 16-Bit
Connectivity

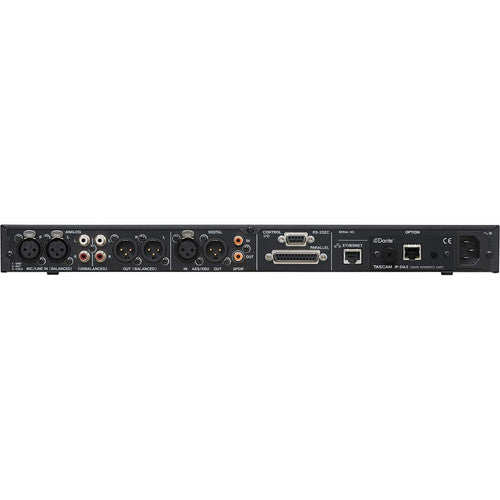

Analog Audio I/O
1x 1/4" TRS Headphone Output
1x Stereo RCA Coaxial Unbalanced Line Input
1x Stereo RCA Coaxial Unbalanced Line Output
2x XLR 3-Pin Balanced Mic/Line Input
2x XLR 3-Pin Balanced Mic/Line Output
Digital Audio I/O
1x XLR 3-Pin AES3 Input
1x RCA Coaxial S/PDIF Input
1x XLR 3-Pin AES3 Output
1x RCA Coaxial S/PDIF Output
USB (Non-Host)
1x USB-A (USB 2.0)
Network I/O
1x RJ45 Ethernet (100BASE-TX)
Other I/O
1x 1/8" / 3.5 mm TRS Remote Input
1x DB-25 Parallel/Control
1x DE-9/DB-9 RS-232
1x 2.5 mm TRS Remote Input
Performance
Frequency Response
20 Hz to 20 kHz ±0.5 dB (JEITA)
Maximum Input Level
Analog Inputs:
+20 dBu
Control Inputs:
+5.5 V
Line Inputs:
+6 dBV
Maximum Output Level
Analog Outputs:
+20 dBu
+6 dBV
Headphone Output Power
45 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance
Analog Inputs:
22 Kilohms
XLR Outputs:
100 Ohms
RCA Outputs:
200 Ohms
Dynamic Range
95 dB (JEITA)
SNR
≥ 95 dB (JEITA)
THD
≤ 0.005% (JEITA)
Crosstalk
95 dB (JEITA)
Digital Audio
Audio File Formats
MP3, WAV
Sample Rates
44.1 / 48 / 96 kHz (WAV, Playback)
44.1 / 48 kHz (MP3, Playback)
44.1 / 48 / 96 kHz (WAV, Record)
44.1 / 48 kHz (MP3, Record)
Bit Depths
16 / 24-Bit (WAV)
Bit Rates
64 to 320 kb/s (MP3)
Audio Storage & Playback
Supported Media
SD Card, SDHC Card, SDXC Card, USB Flash Drive, CD-R, CD-R-DA, CD-RW, CD-RW-DA
Supported Media Capacity
SD:
512 MB Minimum to 2 GB Maximum
SDHC:
4 GB Minimum to 32 GB Maximum
SDXC:
128 GB Minimum
USB Flash Drive:
512 MB Minimum to 64 GB Maximum
Power
Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
23 W (Maximum)
Physical
Operating Temperature
41 to 95°F / 5 to 35°C
Dimensions
19 x 1.8 x 11.9" / 482.6 x 44.5 x 301 mm
Weight
6.4 lb / 2.9 kg



What's in the Box:

  • TASCAM SS-CDR250N Two-Channel Networking CD and Media Recorder
  • AC Power Cord
  • Limited 1-Year Warranty for Parts
  • Limited 90-Day Warranty for Labor
