Yamaha  |  SKU: MG06

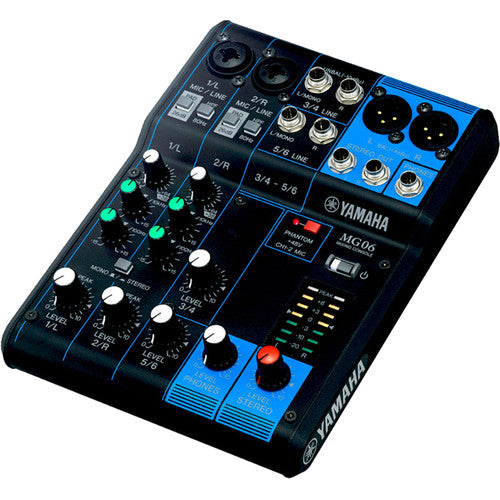

Yamaha MG06 6-Input Mixer

Dhs. 619.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

• Dubai: Delivery within 1 working day.

• Rest of UAE: 1-2 working days.

• GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description
Key Features
  • 2 x XLR-1/4" Combo Mic/Line Inputs
  • 2 x 1/4" Line Stereo Inputs
  • XLR & TRS 1/4" Stereo Outs
  • D-PRE Mic Preamps with 48V Phantom
  • PAD Switch on Mic/Line Inputs
  • HPF & 2-Band EQ on Mic/Line Inputs
  • 1/4" Headphone Output with Level Control
  • Metal Chassis

Overview

The MG06 from Yamaha is a compact six-input mixer for small performances, lectures, recordings, and similar applications. The mixer features two XLR-1/4" combo mic/line inputs with D-PRE mic preamps as well as two 1/4" stereo line inputs with level controls.

Each of the two mic/line inputs is equipped with a 2-band EQ and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26 dB attenuation switches for recording loud sound sources such as guitar amplifiers.

The MG06 mixer has stereo XLR and 1/4" outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring.



Key Specs

Input Channels
2 x XLR-1/4" Combo (Mic/Line)
2 x 1/4" / 6.3 mm Stereo (Line)
Phantom Power
+48 V Switchable, Channels 1, 2
Output Channels
2 x XLR Stereo
2 x 1/4" / 6.3 mm Stereo
1 x 1/4" / 6.3 mm Headphone
Bus
1 x 1/4" / 6.3 mm Stereo
Pad
26 dB (Mono Channels)
HPF
80 Hz, 12 dB/Oct (Mono Channels)
Equalizer
EQ High (Mono Channels) Gain: ±15 dB, Frequency: 10 kHz Shelving

EQ Low (Mono Channels) Gain: ±15 dB, Frequency: 100 Hz Shelving
LED
LED Turns On When Post EQ Signal Reaches 3 dB Below Clipping
Level Metering
2 x 7-Segment LED Meter (Peak, +6, +3, 0, -3, -10, -20 dB)
Total Harmonic Distortion
0.01% @ +8 dBu (20 Hz to 20 kHz), Gain Knob: Min, 0.003% @ +18 dBu (1 kHz), Gain Knob: Min
Frequency Response
20 Hz to 20 kHz ±0.5 dB, Refer to the Nominal Output Level @ 1 kHz, Gain Knob: Min
Equivalent Input Noise
-128 dBu (Mono Input Channel, Rs: 150 Ohms, Gain Knob: Max)
Residual Output Noise
-102 dBu (Stereo Out, Stereo Level Knob: Min)
Crosstalk
-88 dB
Power Requirements
PA-130 (12 VDC / 1 A), 120 VAC, 60 Hz
MU18 (12 VDC / 1.5 A), 100-240 VAC, 50/60 Hz
Or Equivalent Recommended by Yamaha
Power Consumption
12 W
Dimensions
5.9 x 2.4 x 7.9" / 149 x 62 x 202 mm
Net Weight
1.98 lb / 0.9 kg
Packaging Info
Package Weight
3.27 lb
Box Dimensions (LxWxH)
10.65 x 9.65 x 4.8"



What's in the Box:

  • Yamaha MG06 6-Input Mixer
  • AC Adapter
  • Limited 1-Year Manufacturer Warranty
