Zoom  |  SKU: ZU44

Zoom U-44 Portable 4x4 USB Handy Audio/MIDI Interface

Dhs. 379.00
Tax included Shipping calculated at checkout.


Delivery and Shipping

We offer free delivery across the UAE for orders over 250 AED.

For orders below this amount delivery fee of AED 29.00 will apply.

Dubai: Delivery within 1 working day.

Rest of UAE: 1-2 working days.

GCC: We also provide shipping to countries within the GCC, but delivery times may vary depending on location.

  • Credit card & Tabby
  • Cash on Delivery (COD) is available only for orders within the UAE.

Description

Key Features
  • Musicians, Songwriters, and Producers
  • USB Type-A Connectivity
  • 2 Mic Preamps, Zoom Mic Capsule Input
  • 1 Headphone Output, 4 Line Outputs
  • Up to 24-Bit / 96 kHz Resolution
  • Battery or Bus Power / Mac, Windows, iOS
  • Phantom Power, Zero-Latency Monitoring
  • Tactile Controls
  • MIDI and S/PDIF I/O, Output Mute Buttons
  • DAW Software and iPad App

Overview

Armed with the Zoom U-44 Portable 4x4 USB Handy Audio/MIDI Interface, it's easy for musicians, songwriters, and producers to record four sources at a time to their computer, iPhone, or iPad and integrate MIDI gear, too. At home, outside, or while traveling, the U-44's user-friendly tactile controls and high-resolution 24-bit / 96 kHz converters help you capture your creativity with quality. Plus, it comes with Ableton Live Lite and the Steinberg Cubasis LE iPad app to provide the software you need to take your music from inspiration to a finished production.

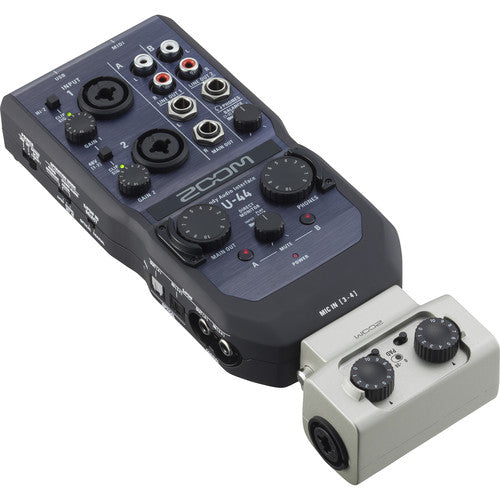

The U-44 features two low-noise microphone preamps with switchable phantom power and XLR-1/4" combo jacks—both can handle mic or line inputs, and Input 1 sports a Hi-Z switch for when you need to track an electric guitar or bass. The 10-pin input enables quick attachment of any Zoom mic/input capsules (available separately) and stereo S/PDIF digital I/O is provided on coaxial and optical ports.

Thanks to mix-adjustable, zero-latency direct monitoring, stereo 1/4" main outs, four RCA line outputs, and a 1/4" headphone port, the U-44 can simultaneously feed speakers and headphones with independent volume control. The headphone output features its own balance knob, which lets you blend computer playback signals 1-2 and 3-4 for customizable cue mixes.


Key Specs

Channels of I/O
Analog:
2 Inputs / 4 Outputs
Digital:
2 Inputs / 0 Outputs
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
1x 1/4" TRS Unbalanced Headphone Output
2x 1/4" TRS Balanced Monitor Output
2x Stereo RCA Unbalanced Line Output
Digital Audio I/O
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
1x TOSLINK Optical S/PDIF Input
1x XLR 3-Pin S/PDIF Output
Host Connection
1x USB-B (Class-Compliant)
Power Requirements
AC/DC Power Adapter (Not Included), Battery, or USB Bus Power
Channels of I/O
Analog:
2 Inputs / 4 Outputs
Digital:
2 Inputs / 0 Outputs
Built-In DSP
No
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
2x Knob
Signal Processing
Pad
No
Gain/Trim Range
Inputs:
0 to 43 dB
High-Pass Filter
No
Solo/Mute
Mute per Master
Connectivity
Analog Audio I/O
1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
1x 1/4" TRS Unbalanced Headphone Output
2x 1/4" TRS Balanced Monitor Output
2x Stereo RCA Unbalanced Line Output
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
1x TOSLINK Optical S/PDIF Input
1x XLR 3-Pin S/PDIF Output
Host Connection
1x USB-B (Class-Compliant)
Host Connection Protocol
USB 2.0
USB (Non-Host)
1x Micro-USB (Power Input)
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No
Other I/O
1x Proprietary/Zoom Mic Module Input
Wireless
No
Performance
Frequency Response
System:
20 Hz to 20 kHz ±1.5 dB (at 44.1 kHz)
20 Hz to 40 kHz ±2 dB (at 96 kHz)
Maximum Input Level
Mic Inputs:
+2.7 dBu
Line Inputs:
+20.7 dBu
Maximum Output Level
RCA Line Outputs:
+8 dBu at 0 dBFS
RCA Headphone Outputs:
+10 dBu at 0 dBFS
1/4" Monitor Outputs:
+10 dBu at 0 dBFS
Headphone Output Power
30 mW per Channel into 32 Ohms
Impedance
Combo XLR-1/4" Mic Inputs:
2.6 Kilohms
RCA Line Outputs:
1 Kilohm
Combo XLR-1/4" Hi-Z Inputs:
1.1 Megohms
Stereo RCA Headphone Outputs:
33 Ohms
1/4" Monitor Outputs:
330 Ohms
EIN
Inputs:
-119.5 dBA (150-Ohm Source)
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
Zero-Latency Direct Monitoring
Sync Sources
Internal, S/PDIF
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Computer: macOS 10.9 or Later / Windows 7 or Later
Mobile: iOS Only
Processor Requirement
Intel Core i3
Mobile Device Compatibility
iPhone
iPad
Required Hardware
Available USB 2.0 Port, USB 3.0 / 3.1/3.2 Gen 1 Port
USB Cable (Included)
Power
Power Requirements
AC/DC Power Adapter (Not Included), Battery, or USB Bus Power
AC/DC Power Adapter
5 VDC (Not Included)
Power Consumption
5 W (Maximum)
Battery Type
2x AA
Approximate Battery Life
4 Hours (Phantom Off)
Physical
Dimensions
7.87 x 3.63 x 1.68" / 19.98 x 9.23 x 4.27 cm
Weight
10.9 oz / 310.0 g
Packaging Info
Package Weight
1.4 lb
Box Dimensions (LxWxH)
9.291 x 6.693 x 2.362"


What's in the Box:

  • Zoom U-44 Portable 4x4 USB Handy Audio/MIDI Interface
  • USB Cable
  • Ableton Live 9 Lite DAW Software (Download)
  • Steinberg Cubasis LE iPad App (Download)
  • Limited 1-Year Manufacturer Warranty
